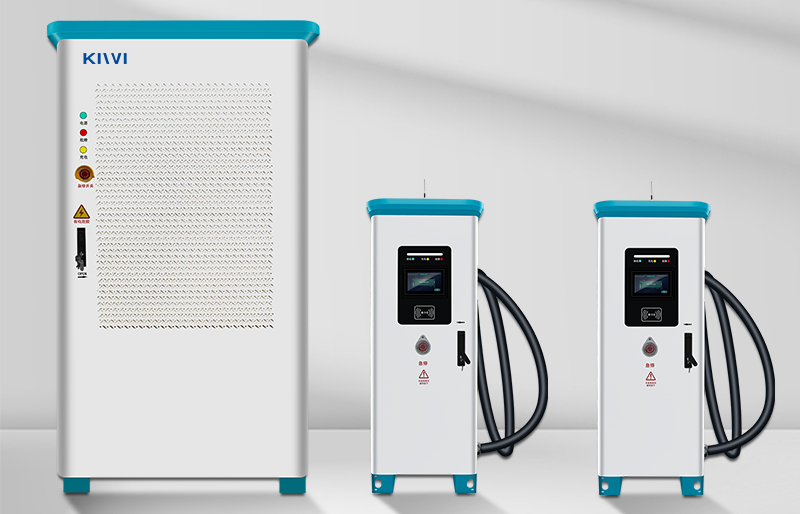

Outdoor Public EV Charging Station With CCS Type 2 CHAdeMO Interface

Place of Origin : Guangdong, China

Model Number : Commercial EV Charger

Brand Name : KIWI

Packaging Details : Carton/wooden box

Supply Ability : 10000 Piece/Pieces per Month

MOQ : 2 pieces

Price : $320.00 - $40,050.00/pieces

Interface Standard : Type1 , Type2 , CCS , CHAdeMO , GB/T

Output Current : 600A Max

Output Power : 240KW Max

Input Voltage : AC 220V - 380V

Installation Method : AC: Wall Mount, DC: Ground Mount

Start-up and Billing Method : Plug&Charge / RFID / APP / ocpp

Charging Connector : Type1 , Type2 , CCS , CHAdeMO , GB/T

Output Voltage Range : DC 1000V Max ; AC 380V Max

Cooling Method : Wind cooling

Plug wire length : 5M (Customizable)

Operation Life : ≥10000

Port : Shenzhen,Foshan,etc.

Contact Now

Convenient and Versatile KIWI Outdoor Public EV Charging Station with CCS Type 2

Questions Before Browsing
⚪ Where is your location?
⚪ What are the popular car models in your location?
⚪ How many EVs are expected to be parked in your parking lot?
⚪ What is the policy of local EV charger installation?
Why Parking Lots Need EV Charger
Outdoor Public EV Charging Station With CCS Type 2 CHAdeMO Interface
As the number of electric vehicles increases worldwide, the number of EV charger has become severely insufficient, if you can install EV chargers in time, you will get: 1. Improve the satisfaction and property prices of residential areas and office areas. 2. Attract more visitors to the business area and increase the length of stay of visitors. 3. Add convenience to employees of hospitals or government agencies. 4. Increase the revenue of the parking lot and prepare for the subsequent increase in the number of electric vehicles.
AC or DC

AC Charging
AC level 2 charging is the most common form to power EVs. This power still relies on the standard AC, but uses a transformer to raise the voltage and increase the speed with which level 2 can top up an EV. Level 2 charging is a great option for homes, multi-unit dwellings and other businesses.

DC Charging
Level 3 charging is also known as “fast charging” (DCFC) or “rapid charging” (DCRC), it is the fastest way to power an EV. Though it requires more initial setup cost and construction, the stability of DC power in level 3 charging can top up an empty EV battery in as little as 30 minutes.
Some Cases for You
For places such as residential areas, hotels, and office buildings that have a lot of time for vehicle charging, it is recommended to install AC and DC chargers at the same time, so that you can take care of a variety of vehicles, and for airports, charging stations, convenience stores and other scenarios where it is inconvenient for vehicles to park and charge for a long time, it is recommended to install DC fast chargers.
If you would like to have a solution that is unique to you,
please contact our engineers
Products Description
Model Numbers
AC 220V-7KW
AC 380V-11KW
AC 380V-22KW
Output Current
0~32A
0~16A
0~32A
Input Voltage
AC 220V 50/60HZ
AC 380V 50/60HZ
AC 380V 50/60HZ
Output Voltage
220V Single-phase
380Vac+/-10% Three-phase
380Vac+/-10% Three-phase
Charging Connector
Type1, Type2, GB/T
Charging Standard
IEC61851, IEC62196
Charging Mode
Plug&Charge/RFID/ APP/OCPP
Size
202*104*388mm
Weight
<6kg (Without column)
Input Line Length
Side open entry
Leakage Protection
Type B RCD AC 30mA +DC 6mA
Plug Wire Length
5M (Customizable)
Connection Method
Method C (Plug wire version)
Lndicator Light
LED Status Light
Protection Level
IP65
Operation Temperature
-20℃ - 55℃
Working Humidity
5%-95%
Installation Method
Wall, Column (optional)
Altitude Limitation
≤2000m
Operation Life
≥10000
More Parameters
Click to get
Outdoor Public EV Charging Station With CCS Type 2 CHAdeMO Interface
Model
60KW
120KW
240KW
Input Voltage
0~200A
0~400A
0~600A
Input Current
AC 380V , 50/60HZ
Output Voltage
DC 200V~1000V
Charging Connector
CCS1 , CCS2 , CHAdeMO , GB/T
Charging Standard
IEC61851 , IEC62196 , ISO15118
Charging Mode
Plug&Charge , RFID , APP , OCPP1.5j / 1.6j
Size
700*340*1670 mm
700*340*1670 mm
772*763*1966 mm
Weight
>258kg
Input Current
AC 0A~182A; 50mm cable
AC 0A~230A; 75mm cable
AC 0A~364A, 90mm cable
Leakage Protection
RCD AC 30mA
Plug Wire Length
5M (Customizable)
Cooling Method
Wind Cooling
Protection Level
IP54
Operation
Temperature
-20℃-55℃
Relative Humidity
5%-95%
Altitude Limitation
≤2000m
Operation Life
≥10000
More Parameters
Click to get
Outdoor Public EV Charging Station With CCS Type 2 CHAdeMO Interface
Contact us for more product picture and parameter.
Customizable Options
Outdoor Public EV Charging Station With CCS Type 2 CHAdeMO Interface
We will recommend you different charging guns according
to your location or provide charging guns according to your needs
Outdoor Public EV Charging Station With CCS Type 2 CHAdeMO Interface
Please contact us to discuss the details of the solution
Why Choose Us
Outdoor Public EV Charging Station With CCS Type 2 CHAdeMO Interface
Shenzhen Kiwi Technology Co.,Ltd.
Our company a high-tech enterprise specializing in complete ev charging solution from high-quality AC EV wallboxes, reliable DC EV fast charging stations with robust connectivity, App/PC operation software to innovative on-demand ev charging systems. Kiwi has 4 production bases with modern workshops, complete production line and advanced testing equipments. One of them is covered more than 26,000㎡. Kiwi has passed 1S09001, ISO14001 and ISO16949 certification.

2
The group has 2 sub-brands

8
Established 8 years ago

10
Global Sites 10+

15
Regional access certificate 15+

20
20+ R&D engineers

29
Served 29 countries

120
120+ experienced employees

330
330+ orders per year

2200
OCPP loading devices 2200+
Outdoor Public EV Charging Station With CCS Type 2 CHAdeMO Interface
Outdoor Public EV Charging Station With CCS Type 2 CHAdeMO Interface
Outdoor Public EV Charging Station With CCS Type 2 CHAdeMO Interface
Outdoor Public EV Charging Station With CCS Type 2 CHAdeMO Interface
Our sales teams come from different countries who are dedicated to provide the best product and service in EV charger industry for you.
Outdoor Public EV Charging Station With CCS Type 2 CHAdeMO Interface
Our elite engineers have more than 10 years experience that they can solve your professional questions of EV charger.
Outdoor Public EV Charging Station With CCS Type 2 CHAdeMO Interface
We have 100% real professional factory, if we both have the sincerity of cooperation, we will definitely give you the most competitive price.
Outdoor Public EV Charging Station With CCS Type 2 CHAdeMO Interface
We welcome communication from people all over the world, whether you end up buying from us or not.
Outdoor Public EV Charging Station With CCS Type 2 CHAdeMO Interface
Outdoor Public EV Charging Station With CCS Type 2 CHAdeMO Interface
