EU UK Smart EV Charger 320KW 480KW 1200KW Commercial DC Fast Charging Stations

Name: EU UK Smart EV Charger 320KW 480KW 1200KW Commercial DC Fast Charging Stations
Brand: KIWI
Price: 48 USD

Quality EU UK Smart EV Charger 320KW 480KW 1200KW Commercial DC Fast Charging Stations wholesale

Place of Origin : Guangdong, China

Model Number : DC 320KW ~ 1200KW

Brand Name : KIWI

Packaging Details : professional plywood box

Supply Ability : 500 Piece/Pieces per Month

MOQ : 2 pieces

Price : $48,000.00/pieces 2-9 pieces

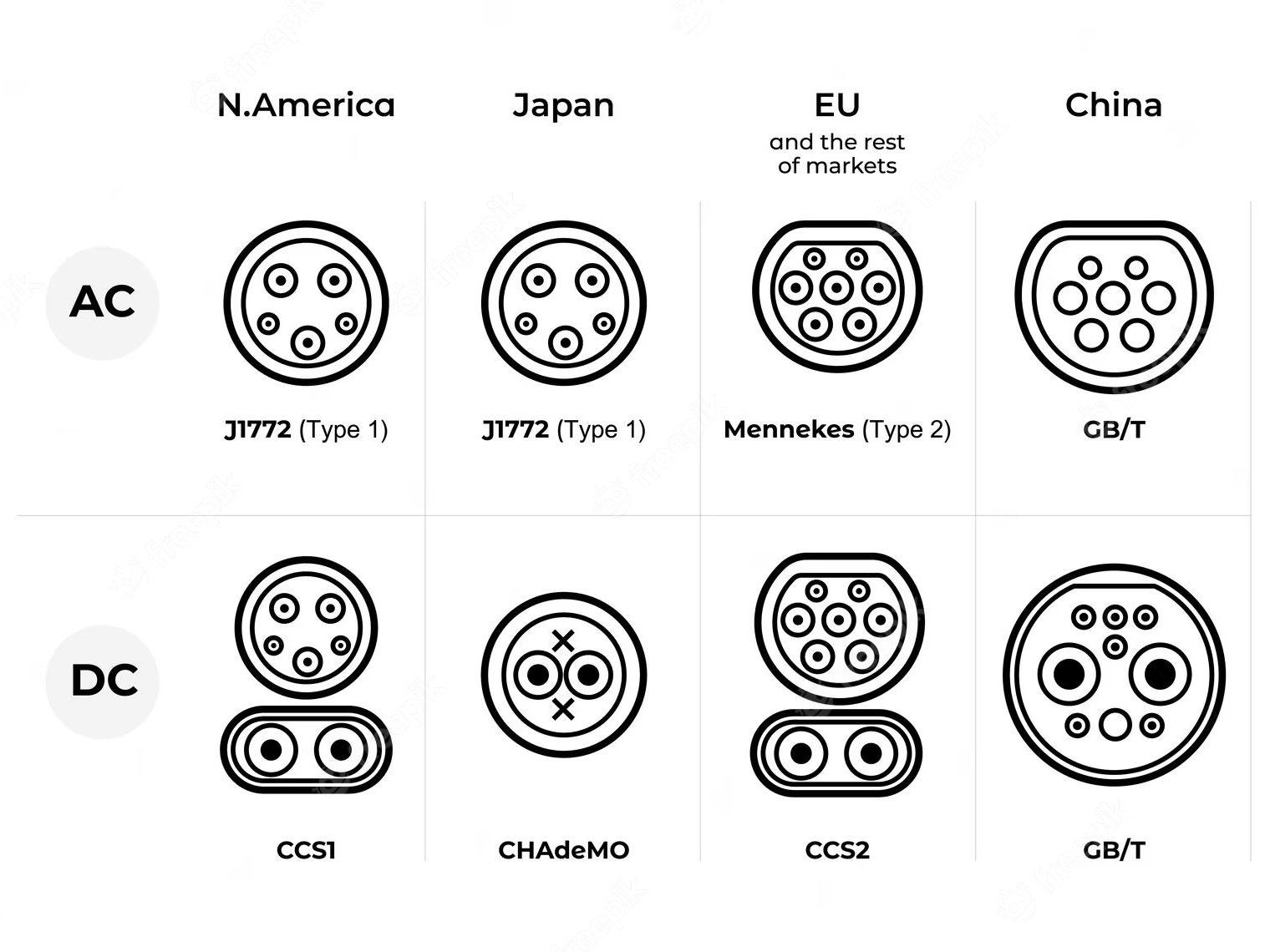

Interface Standard : CCS1, CCS2, CHAdeMO, GB/T

Output Current : 0-600A

Output Power : 320KW ~ 1200KW

Input Voltage : AC 380V 50/60H

Output Voltage Range : DC150~1000V

Input voltage range : AC 304~485V

Installation method : Floor-standing Installation

Grid frequency : 50Hz ±10Hz

Working temperatue : -40°C~+65°C

IP protection level : IP54

Cooling method : Wind cooling

Port : Shenzhen,Foshan,HK,etc.

Contact Now

EU UK Smart EV Charger 320KW 480KW 1200KW KIWI Commercial Public DC Fast Charging Stations

EU UK Smart EV Charger 320KW 480KW 1200KW Commercial DC Fast Charging Stations

Shenzhen Kiwi Technology Co., Ltd.

As a solution provider, we can help you calculate the cost of use and match the best product solution with the local policy.

Questions Before Browsing

⚪ Where is your location?

⚪ What are the popular car models in your location?

⚪ How many EVs are expected to be parked in your parking lot?

⚪ Do you get the permission to install EV charging stations?

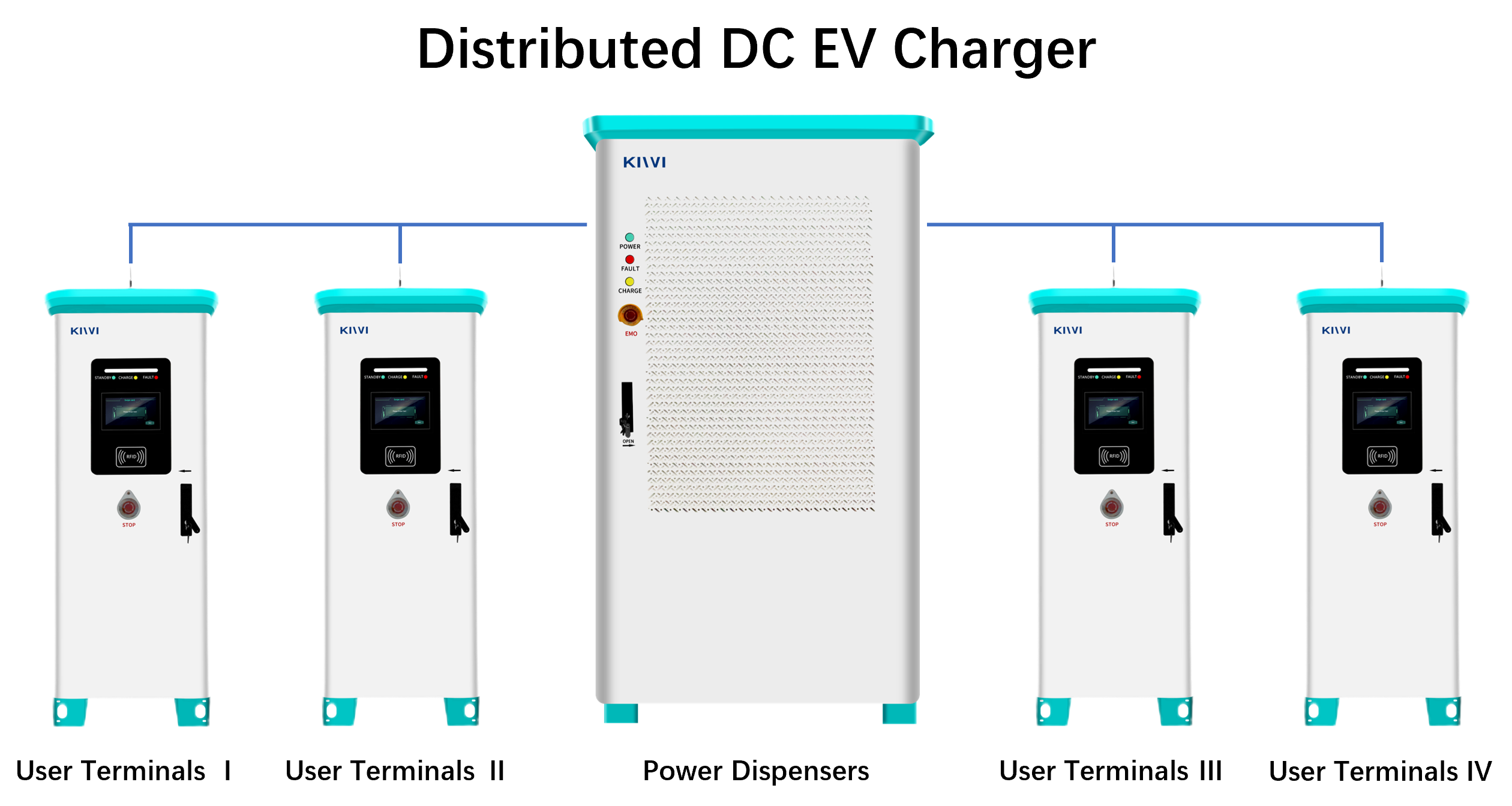

Advantages of Distributed Charger

⚪Employs a 32-bit high performance embedded industrial class processor as the main controller. ⚪Adopts class 0.5 multifunctional DC watt-hour meter to accurately measure the charging capacity of a vehicle. ⚪Employs a non-contact card swiping device.In addition,the hardware encryption authentication is implemented to ensure the security of the card account data. ⚪Adopts a 7-inch LCD touch screen,which displays bright color and enables outdoor high-brightness display and adapates to low temperature -20℃. ⚪Has the function of detecting the discharge of charging gun to ensure the safety in the charging process. ⚪According to configuration,the product communicates with the monitoring platform through 3G/4G,Ethernet,WIFI interfaces and reports various records in time to ensure the real-time monitoring of the charging pile by the monitoring platform. ⚪The system software supports remote and local upgrade functions.

Case of Distributed EV Charger:

480KW with 4 User Terminals *6 for 24 Parking Spaces

Energy Sources

Some of the cases we have worked with include the use of grid energy supply, and some use solar energy storage systems for energy supply.

Payment for charging

In the case of public fast-charging stations, credit cards and Apple Pay are used most often, with a few using RFID cards as membership credentials.

Power Selection

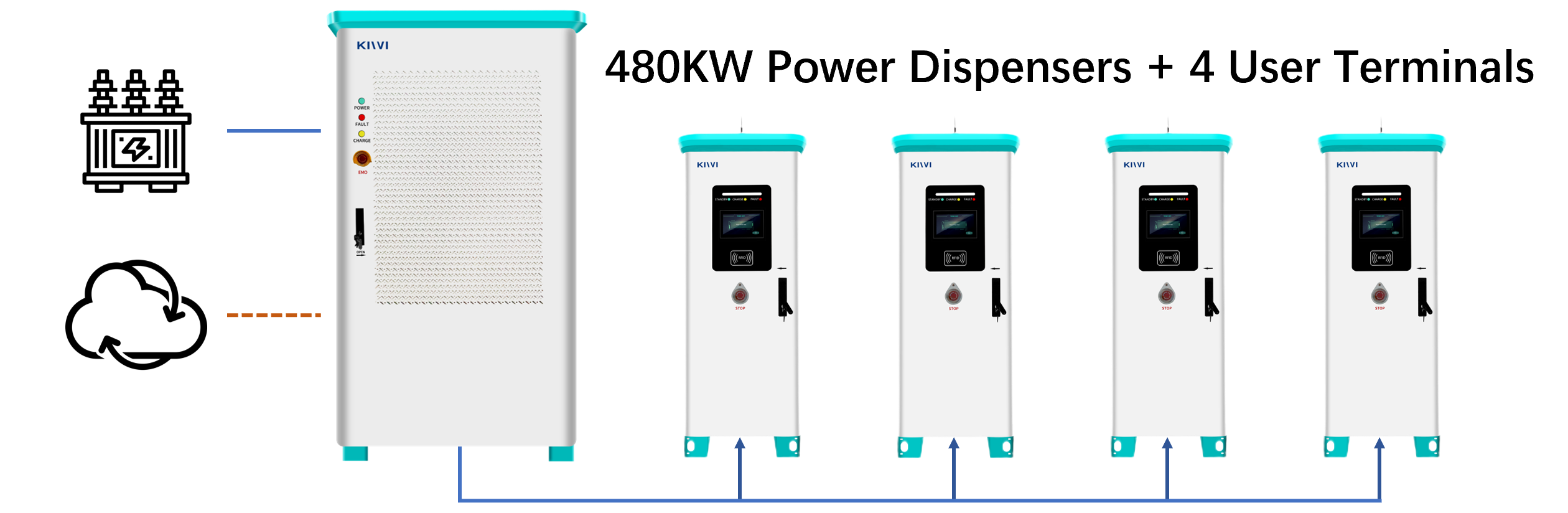

Most buyers purchase 480KW power dispensers with 4 user terminals, thus ensuring that each terminal can be allocated at least 120KW of power.

SaaS Selection

We provide a more advanced tuya intelligent management platform for all buyers who have purchased 1200KW upwards.

Appearance and Shape

We can customize the appearance of your products with logos, colors, or other molds on demand, but the price of the products will vary.

After-sales Service

We will provide a team of professional engineers and localized installation tutorials to ensure worry-free product after-sales.

Products Description

Model	320KW	600KW	720KW+
Charging Unit	4	4	6
Charging Gun	4 / 8	4 / 8	6 / 12
Output Capacity of Each Unit	40KW ~ 80KW	30KW ~ 120 KW	30KW ~ 180 KW
Output Current	1064A	1600A	2400A
Output Voltage	DC 150V ~ 1000V (Constant power range 300V ~ 1000V)
Input Voltage Range	AC 304V ~ 485V
Installation Method	Floor-standing
Start-up and Billing Method	RFID / plug and charge / QR Code / Credit card
Power Distribution Mode	Standalone mode, Plug switch, Master-slave mode
Input Voltage	AC 380V ±20%(ABC+N+PE)
Grid Frequency	50Hz ±10Hz
Power-on Input Impulse Current	≤ Maximum input current 120%
Input Protection	Overvoltage, Undervoltage protection, Lightning protection, Phase loss detection
Input Break	With AC 30mA leakage plastic case
Output Voltage	DC 200V ~ 1000V
Steady Flow Accuracy	≤ ±0.5%
Ripple Factor	≤ ±0.5%
Temperature Coefficient	≤ ±0.2%
Effectiveness	≥ 95%
Power Factor	≥ 0.98 (Above 50% load)
Export Insurance	250A
Working Temperature	-40°C ～ 65°C
Storage Temperature	-40°C～ 80°C
IP Protection Level	IP54
Wind Tunnel	Side in and side out
Cooling Method	Wind cooling
Base	Steel base
Size	218311631057 mm & 1067692392 mm
Maximum output power of a single plug	The maximum power depends on the amount of current the plug wire can hold. Due to the intelligent power distribution of the system, theoretically the maximum power of the whole system can be used when charging only one vehicle

Customizable Options

We will recommend you different charging guns according

to your location or provide charging guns according to your needs

Please contact us to discuss the details of the solution

Why Choose Us

Shenzhen Kiwi Technology Co.,Ltd.

Our company a high-tech enterprise specializing in complete ev charging solution from high-quality AC EV wallboxes, reliable DC EV fast charging stations with robust connectivity, App/PC operation software to innovative on-demand ev charging systems. Kiwi has 4 production bases with modern workshops, complete production line and advanced testing equipments. One of them is covered more than 26,000㎡. Kiwi has passed 1S09001, ISO14001 and ISO16949 certification.

The group has 2 sub-brands

Established 8 years ago

Global Sites 10+

Regional access certificate 15+

20+ R&D engineers

Served 29 countries

120

120+ experienced employees

330

330+ orders per year

2200

OCPP loading devices 2200+

Our sales teams come from different countries who are dedicated to provide the best product and service in EV charger industry for you.

Our elite engineers have more than 10 years experience that they can solve your professional questions of EV charger.

We have 100% real professional factory, if we both have the sincerity of cooperation, we will definitely give you the most competitive price.

We welcome communication from people all over the world, whether you end up buying from us or not.
