AC Leakage RCD B 240kw OCCP1.6 DC CCS CE OEM DC Fast EV Charging Station Installation

Name: AC Leakage RCD B 240kw OCCP16 DC CCS CE OEM DC Fast EV Charging Station Installation
Brand: KIWI
Price: 38 USD

Quality AC Leakage RCD B 240kw OCCP1.6 DC CCS CE OEM DC Fast EV Charging Station Installation wholesale

Place of Origin : Guangdong, China

Model Number : F6-DC1000V-240KW/A

Brand Name : KIWI

Interface Standard : CCS1/CCS2/CHADEMO/GBT

Output Current : 400A

Output Power : 240KW

Input Voltage : AC 380V±20(ABC+N+PE)

Installation Method : Floor-standing

Start-up and billing method : RFID,plug and charge,Scan QRCode

Input voltage : Three phase AC 380V±20%(ABC+N+PE)

Input current range : AC 0A~182A

Grid frequency : 50Hz±10Hz

Output current : 240KW DC 0 ~400A

Output voltage : DC 150V~1000V

IP protection level : IP54

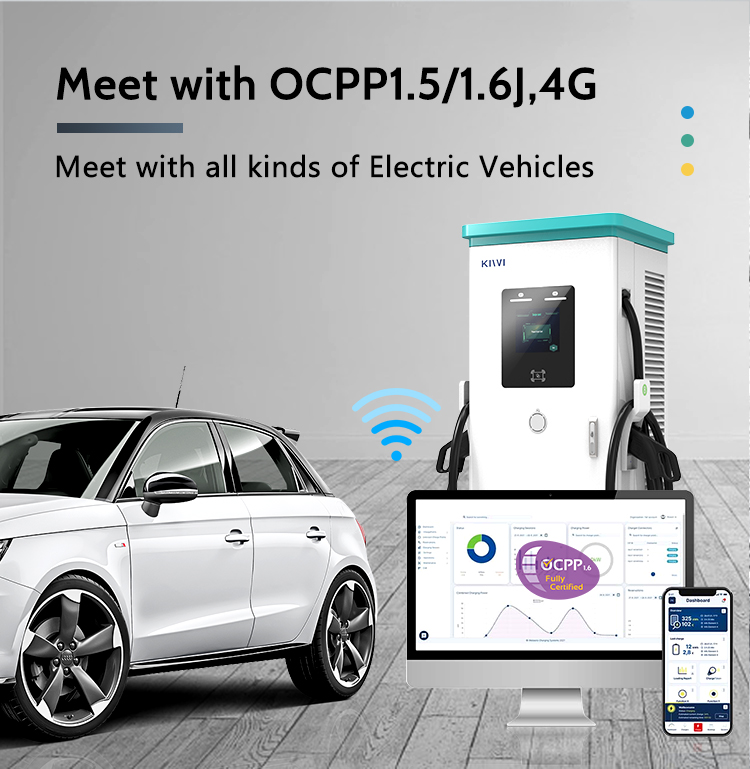

OCPP : OCPP 1.6J/1.5J

AC leakage : RCD B

Packaging Details : professional plywood box

Port : Shenzhen,Foshan,HK,etc.

Supply Ability : 500 Piece/Pieces per Month

MOQ : 5 pieces

Price : $38,500.00/pieces 5-10 pieces

Contact Now

AC Leakage RCD B 240kw OCCP1.6 DC CCS CE OEM DC Fast EV Charging Station Installation

Features	Discription

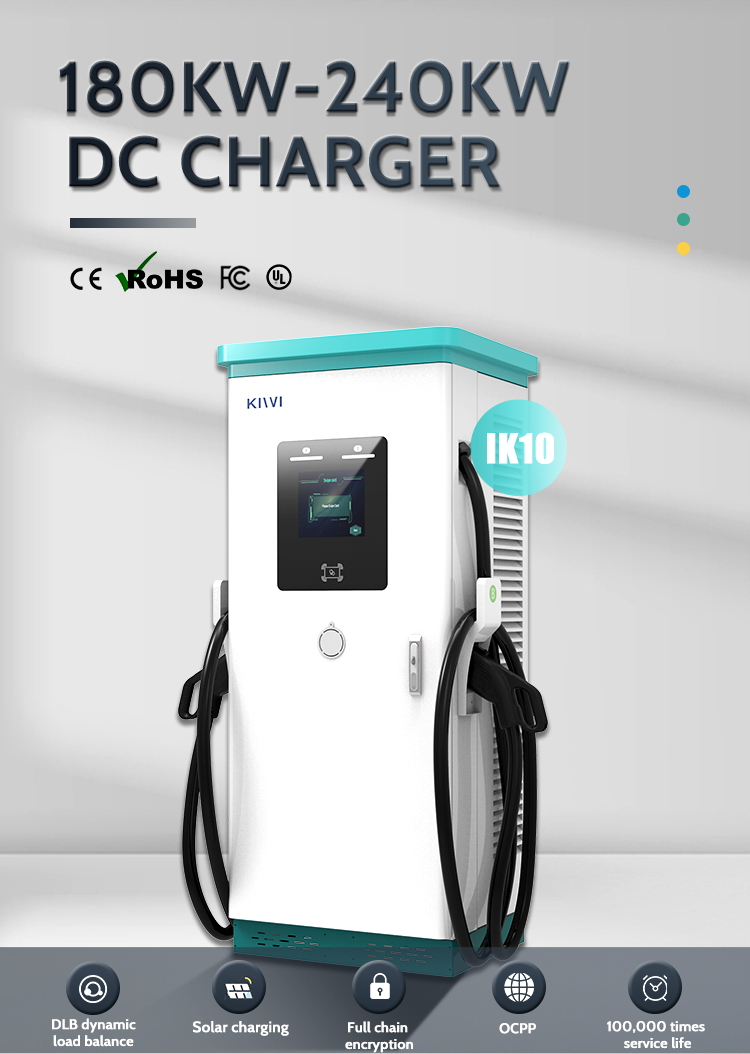

Rated Power	180KW-240KW
Charging mode	RFID、plug and charge、Scan QRCode

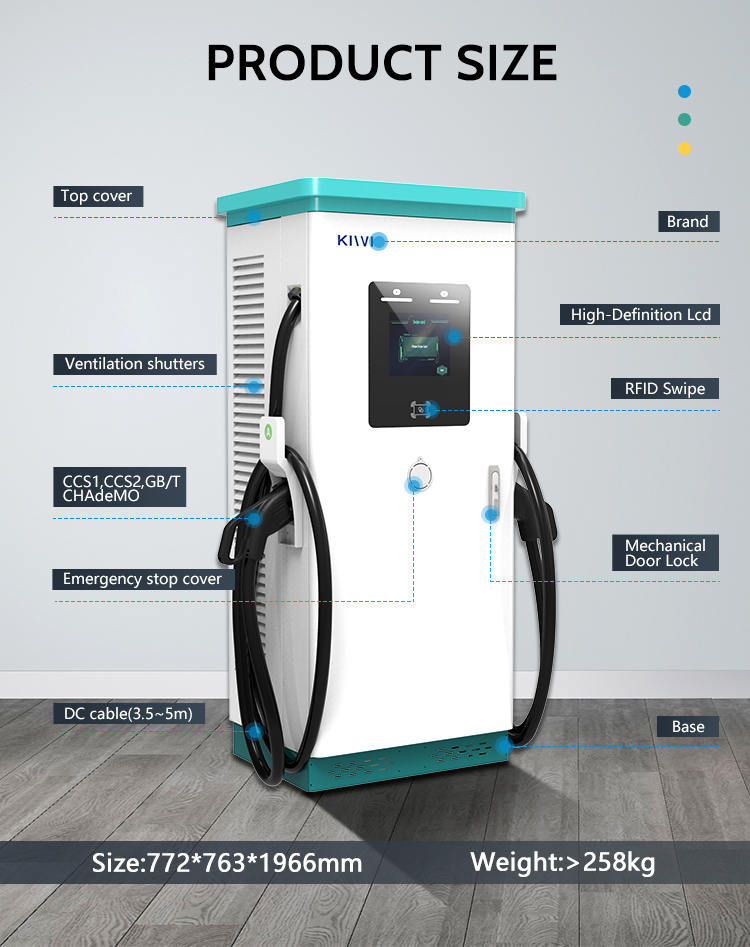

*Size (H W * D)**	7003401670mm
Weight	250kg
Weight	250kg
Plug wire length	3.5m(customizable)

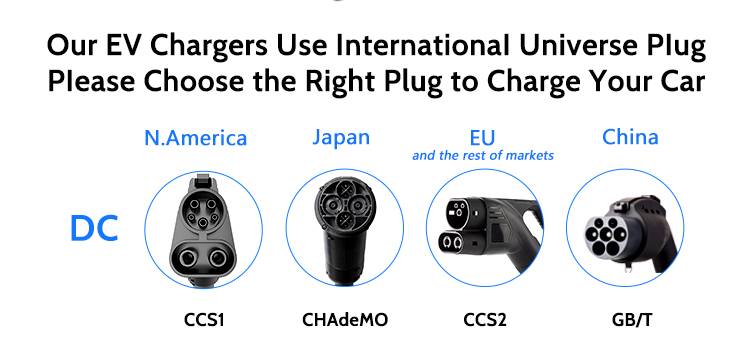

Plug standard	CHAdeMO or CCS1 orCCS2 orGB/T
Protection level	IP54
Cooling Method	Wind cooling
Standard :LAN Optional :WIFI、4G	server communication, APP communication
OCPP	OCPP 1.6J/1.5J
Input
Input Voltage	Three-phase AC380V 50/60Hz（L1+L2+L3+N+PE）
Input Current	Each phase 0~182A
			150KW,AC 0A~230A, 75mm cable
			180KW,AC 0A~280A, 90mm cable
Leakage Protection	Type B RCD 30mA + 6mA
Operating temperature	-20℃~60℃
Output		With AC30mA leakage plastic case
Output voltage	DC 180V~1000V
Output current	180KW DC 0 ~100A
Human-computer interaction		≥0.98 (Above 50% load)
LED indicator	Power supply, charging green, fault red
LCD	HD high-brightness industrial resistance display

Customers Also Like to Ask These Questions

Q: How is your electric vehicle charging station after-sale service? A:1/We will build a whatsapp/skype/wechat service group with technical engineers and company leader if need;

2/We provide 24/7 online service,so you're welcome to contact us any time you need;
3/Will change the part for free during warranty if non-human damage,for other problems,we'd like to supply customer the part at original cost. Q: How is your payment method?

A: Same as other ev charging stations suppliers,normally 30%-50% deposit and balance paid off before shipment,special requirement customer please contact us for further discussion. Q: How long is your normal delivery time? A: 1/For stock ev charger,can arrange the shipment immediately after you confirm the order;

2/For custom AC ev charger less than 100pcs,normally 7-15 days;
3/For custom DC ev charger less than 100pcs,normally 15-25 days; Q: Can I use my own card or app at your electric car charging stations? A: Normally the RFID card and app have to identify our electric charger,so we will provide you 3 free RFID card for each charger. Q:Will your electric car charger charging slower in winter? A:The electric charging station may need a little longer warm up time before normal run,but this is very small change,it won't influence the output power,so we can ignore this influence. Q:Can you provide a video how to install the electric vehicle charger? A:Yes we have the installation guide video,it's very easy and anyone who know a little about electricity safety can finish this work,we will also be ready online to help your any possible question.

Q:How can I become your exclusive agency?

Only if you have this interest,you can be our agent if we don't have exclusive agent in your market.
if you want to be exclusive agent,we will have an annual sales amount target requirement,welcome to further discuss about more details,we're open to any constructive advice.
