Place of Origin : Guangdong, China
Model Number : F6-DC1000V-120KW/AB
Brand Name : KIWI
Interface Standard : j1770
Output Current : 0~100A
Output Power : 120KW
Input Voltage : 380V
Installation Method : Floor-standing
Start-up and billing method : RFID,plug and charge,Scan QRCode
Grid frequency : 50Hz±10Hz
IP protection level : IP54

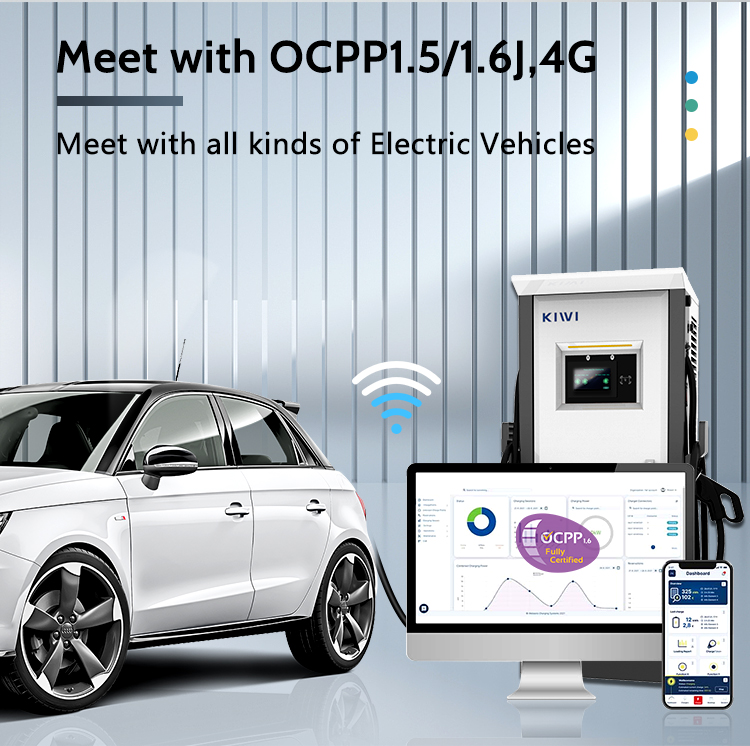

OCPP : OCPP 1.6J/1.5J
USB : Upgrade, download
RS485 : Point to Point communication
Insulation detection : DC+ and PE, DC- and PE impedance
Connection temperature : Plug temperature detection
DC leakage : RCD
Packaging Details : Carton/wooden box
Port : Yantian Port, Shekou
Supply Ability : 300 Piece/Pieces per Month
MOQ : 2 pieces
Price : $20,000.00/pieces 2-4 pieces
Item | Value |

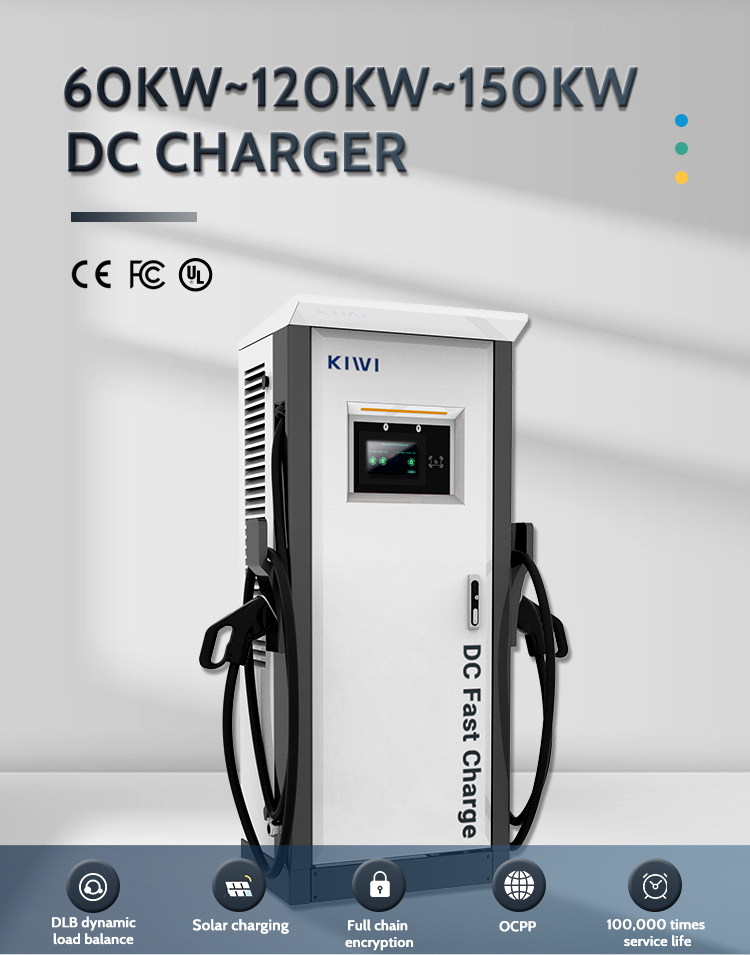

Rated Power | 60KW/120KW/150KW |
Charging mode | RFID、plug and charge、APP(OCPP) |

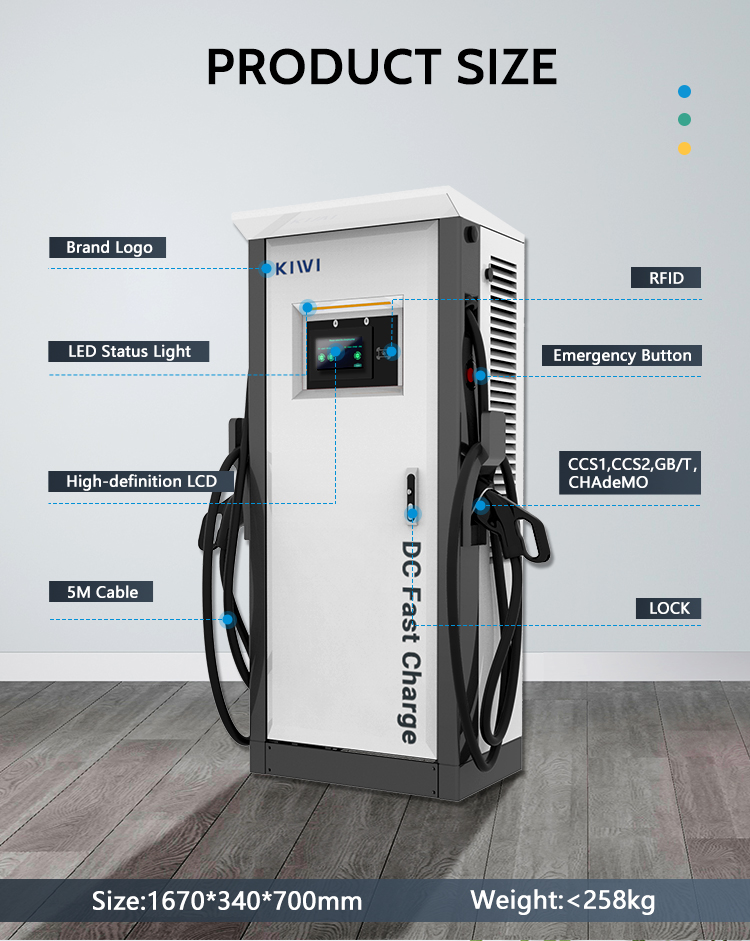

Size (H * W * D) | 700*340*1670mm |
Weight | 258kg |
Plug wire length | 3.5m(customizable) |

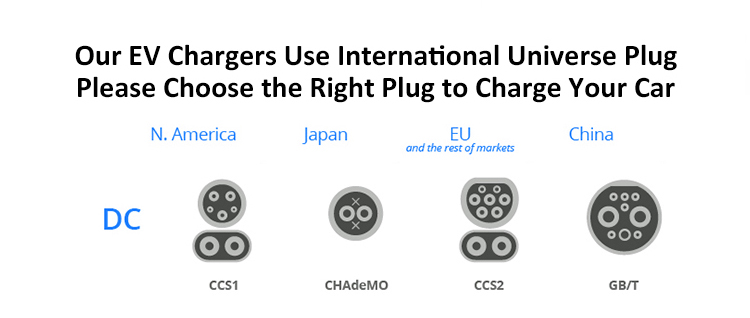

Plug standard | CHAdeMO or CCS1 orCCS2 orGB/T |
Protection level | IP54 |
Cooling Method | Wind cooling |
Standard :LAN Optional :WIFI、4G | server communication, APP communication |
OCPP | OCPP 1.6J/1.5J |
Input | ||
Input Voltage | Three-phase AC380V 50/60Hz(L1+L2+L3+N+PE) | |
Input Current | Each phase 0~92A | |
Leakage Protection | Type B RCD 30mA + 6mA | |
Operating temperature | -20℃~60℃ |
Output | ||
Output voltage | DC 150V~1000V | |
Output current | 60KW DC 0 ~100A |
Human-computer interaction | ||
LED indicator | Power supply, charging green, fault red | |
LCD | 7 Inch HD high-brightness industrial resistance display |
![]() |
380V OCPP 1.6J/1.5J Outdoor Charging Pile for Automobile Operating Company Operation Images |
