Hyundai Ioniq5 30kw Electric Vehicle Charging Station wit

Name: Hyundai Ioniq5 30kw Electric Vehicle Charging Station wit
Brand: KIWI
Price: 6 USD

Quality Hyundai Ioniq5 30kw Electric Vehicle Charging Station wit wholesale

Place of Origin : Guangdong, China

Model Number : F5-DC1000V-30KW

Brand Name : KIWI

Interface Standard : CCS

Output Current : DC

Output Power : 22kW - 43kW

Input Voltage : 380v

Installation Method : Wall mounted,Column

Start-up and billing method : RFID,plug and charge,Scan QRCode

Grid frequency : 50Hz±10Hz

IP protection level : IP54

OCPP : OCPP 1.6J/1.5J

USB : Upgrade, download

RS485 : Point to Point communication

Insulation detection : DC+ and PE, DC- and PE impedance

Connection temperature : Plug temperature detection

Leakage current detection : 30mA leakage protection switch

Packaging Details : Carton/wooden box

Port : Yantian Port, Shekou,HK,Foshan,etc.

Supply Ability : 3000 Piece/Pieces per Month

MOQ : 5 pieces

Price : $6,000.00/pieces 5-9 pieces

Contact Now

Hyundai Ioniq5 30kw Electric Vehicle Charging Station wit

Item	Value
Installation Method	wall-mounted/Column(optional)

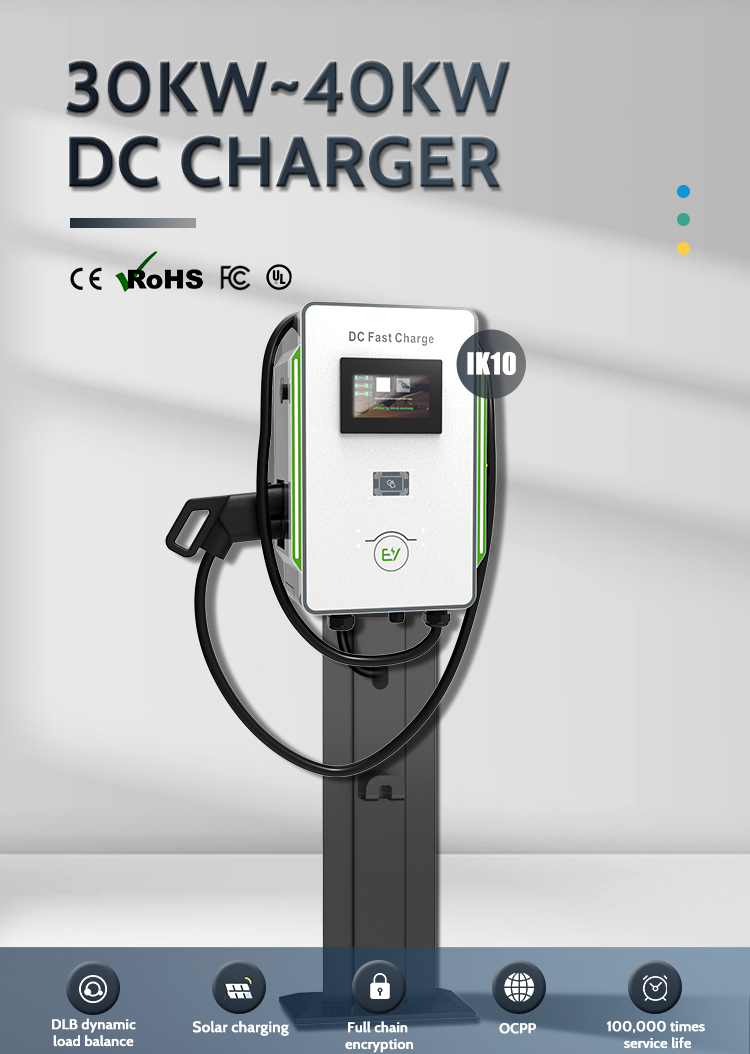

Rated Power	30KW/40KW
Start-Up And Billing Method	RFID、plug and charge、CMS（Scan QR Code）
Input Voltage	Three phase DC1000V±20%（ABC+N+PE）
Grid Frequency	50Hz±10Hz
Input Current Range	AC 0A~45A
Power-On Input Impulse Current	≤ Maximum input current 120%

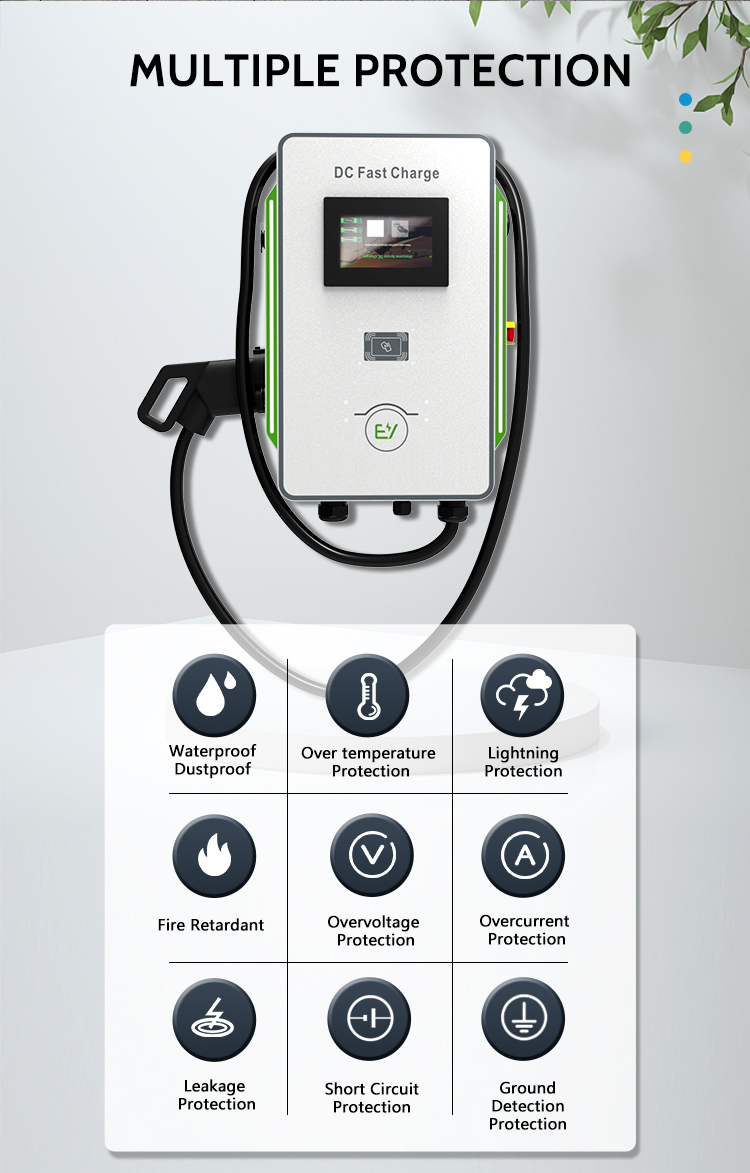

Input Protection	Overvoltage, dustproof and waterproof, overload, short circuit protection, lightning protection, energy load output
Input Break	With AC 30mA leakage plastic case
Output Current	30KW/40KW, DC 0~60A
The Output Voltage	DC 200V~1000V
Effectiveness	≥95%

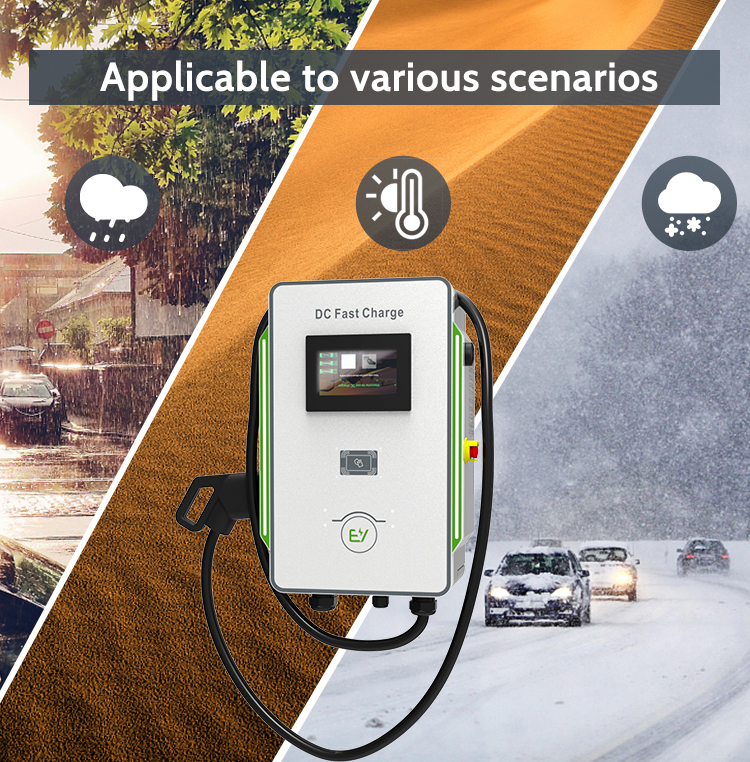

Working Temperature	-30℃～+55℃; -40℃(±4℃) module start-up; derating use above 55℃; shutdown above 70℃
IP Protection Level	IP54
Cooling Method	Smart air cooling
Noise	≤60dB

Features:

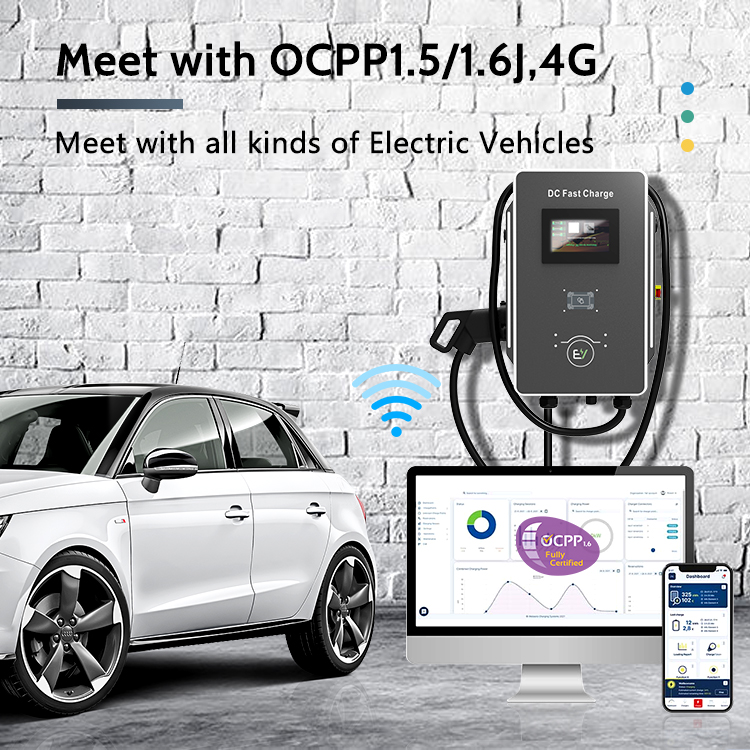

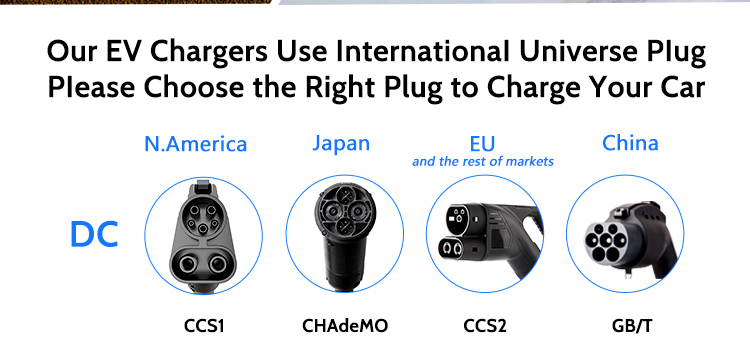

1. Support European standard CCS2, American standard CCS1, two kinds of charging Point 2. ISO15118/DIN70121, IEC61851,
IEC62196 or SAE-J1772 3. OCPP1.5/OCPP1.6 4. High-definition LCD , multi-language support 5. RFID, plug and charge, QRCode scan
code 6. Wide voltage (200~1000V) 7. Power size, the number of modules can be set（ DC 0~60A）

Customers Also LIke to Ask These Questions

Q: How is your electric vehicle charging station after-sale service?

A:1/We will build a WhatsApp/skype/WeChat service group with technical engineers and company leader if needed;
2/We provide 24/7 online service, so you're welcome to contact us any time you need;
3/Will change the part for free during warranty if non-human damage, for other problems, we'd like to supply the customer the part at the original cost.

Q: How is your payment method?
A: Same as other EV charging stations suppliers, normally 30%-50% deposit and balance paid off before shipment, special
requirement customer, please contact us for further discussion.

Q: How long is your normal delivery time?
A: 1/For stock EV charger can arrange the shipment immediately after you confirm the order;
2/For custom AC EV charger less than 100pcs, normally 7-15 days;
3/For custom DC EV charger less than 100pcs, normally 15-25 days;

Q: Can I use my card or app at your electric car charging stations?
A: Normally the RFID card and app have to identify our electric charger, so we will provide you with 3 free RFID cards for each charger.

Q: Will your electric car charger charge slower in winter?
A: The electric charging station may need a little longer warm-up time before the normal run, but this is a very small change, it won't influence the output power, so we can ignore this influence.

Q: Can you provide a video on how to install the electric vehicle charger?
A: Yes we have the installation guide video, it's very easy and anyone who knows a little about electricity safety can finish this
work, we will also be ready online to help you with any possible questions.

Q: How can I become your exclusive agency?
A: Only if you have this interest, you can be our agent if we don't have an exclusive agent in your market.
if you want to be an exclusive agent, we will have an annual sales amount target requirement, welcome to further discuss more details, we're open to any constructive advice. details, we're open to any constructive advice.

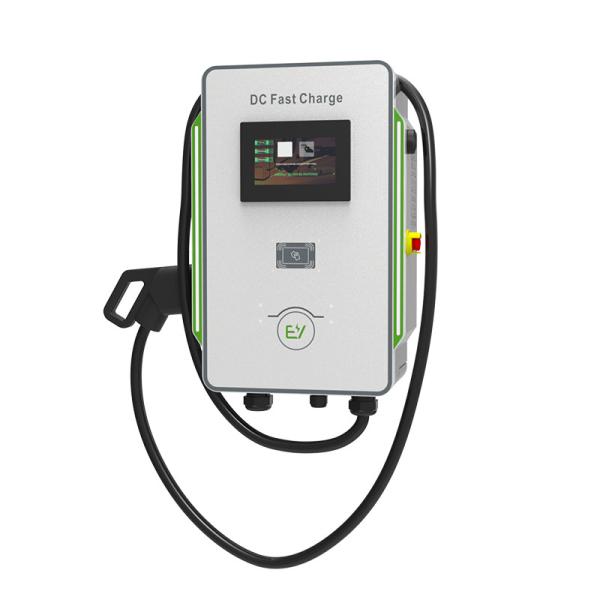

Hyundai Ioniq5 30kw Electric Vehicle Charging Station wit Images
