Place of Origin : Guangdong, China
Model Number : F6-DC1000V-80KW/A
Brand Name : KIWI

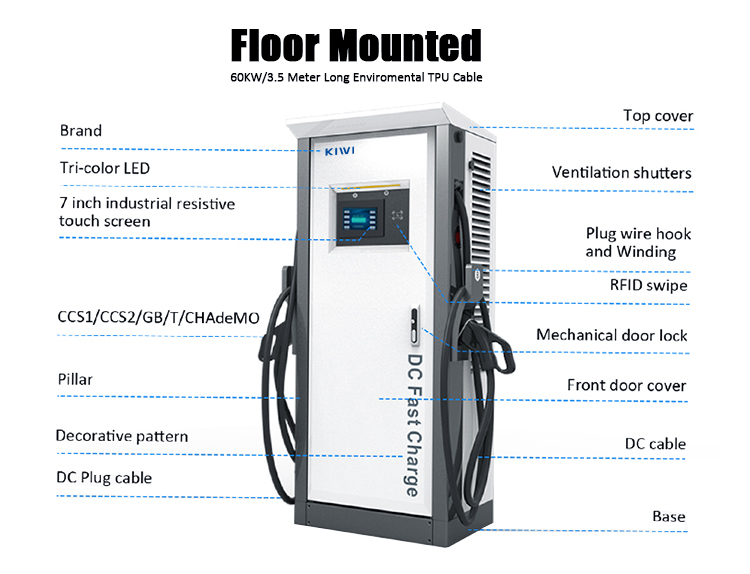

Installation Method : Floor-standing
Start-up and billing method : RFID,plug&charge,Scan QR Code
Input voltage : Three phase AC 380V±20%(ABC+N+PE)
Input current range : AC 0A~136.5A
Grid frequency : 50Hz±10Hz
Output current : 80KW DC 0 ~300A
Output voltage : DC 150V~1000V

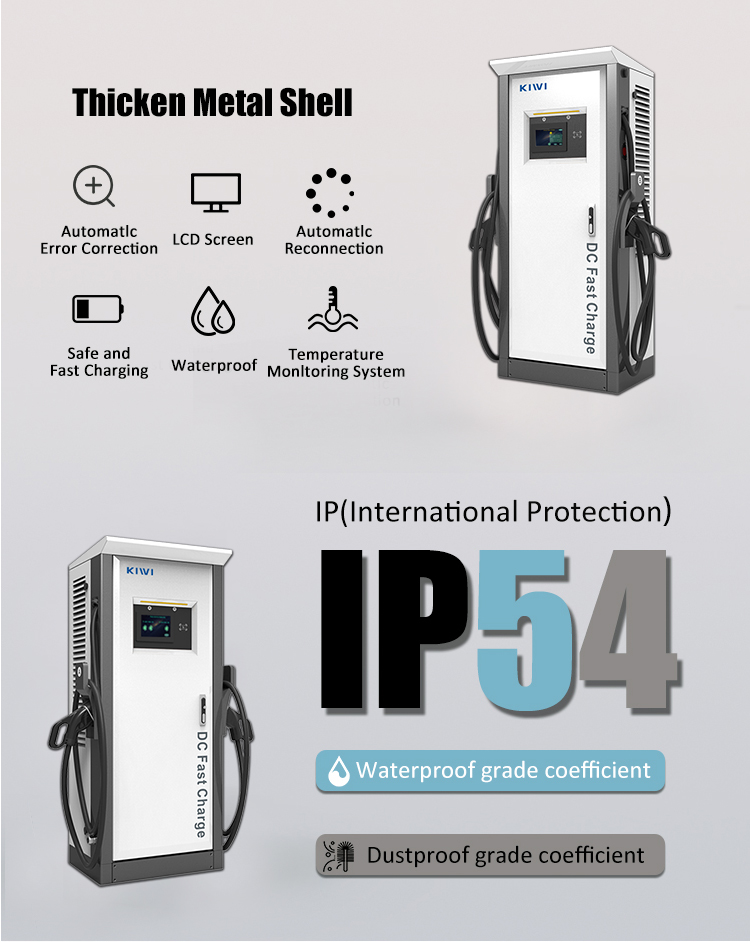

IP protection level : IP54
OCPP : OCPP 1.6J/1.5J
AC leakage : RCD
Packaging Details : professional plywood box
Port : Shenzhen,Foshan,HK,etc.
Supply Ability : 1000 Piece/Pieces per Month
MOQ : 3 pieces
Price : $15,000.00/pieces 3-4 pieces
Features | Discription | ||||||
Rated Power | 80KW | ||||||

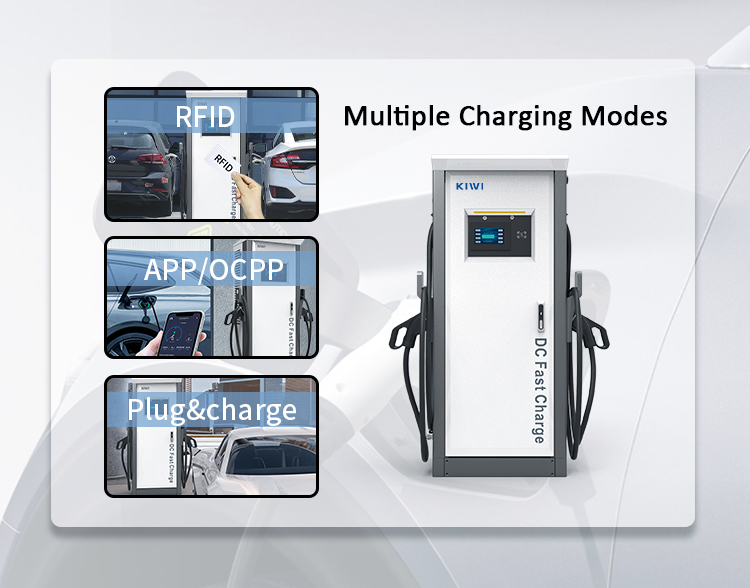

Charging mode | RFID、plug and charge、Scan QRCode | ||||||

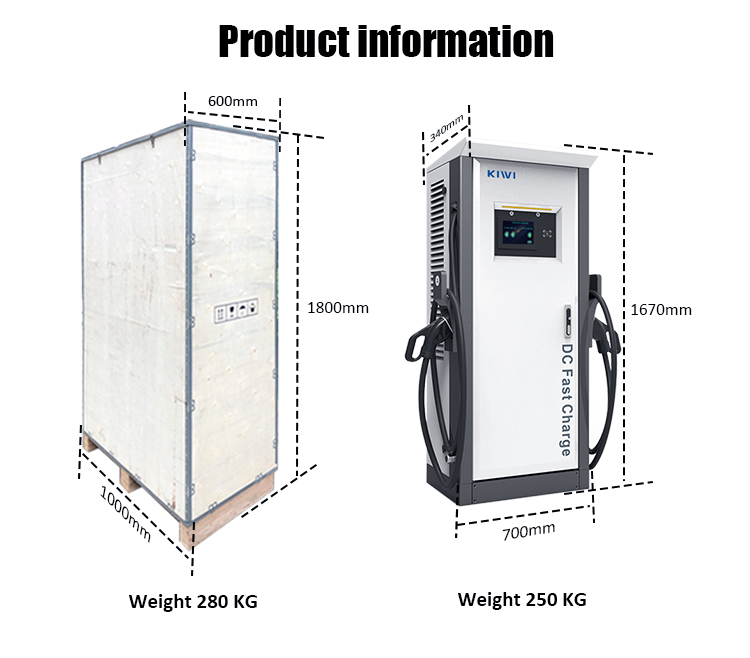

Size (H * W * D) | 700*340*1670mm | ||||||
Weight | 250kg | ||||||
Plug wire length | 3.5m(customizable) | ||||||

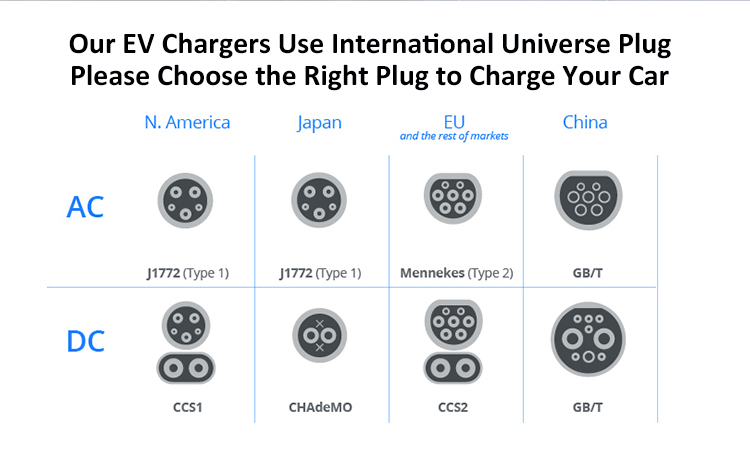

Plug standard | CHAdeMO or CCS1 orCCS2 orGB/T | ||||||
Protection level | IP54 | ||||||
Cooling Method | Wind cooling | ||||||
Standard :LAN Optional :WIFI、4G | server communication, APP communication | ||||||

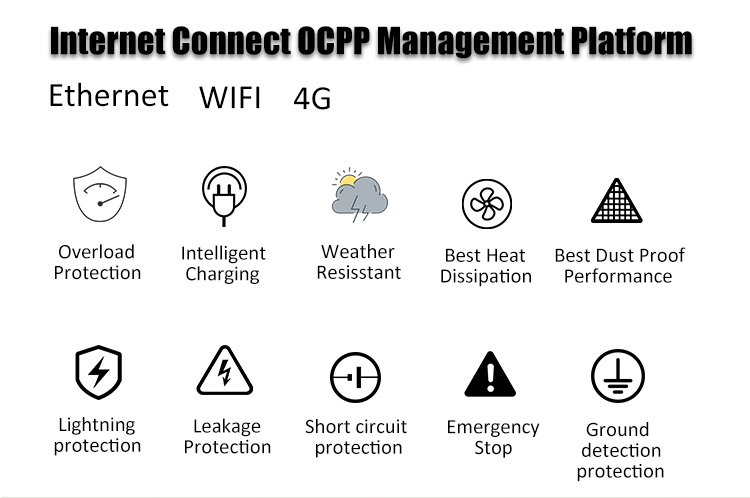

CPP | OCPP 1.6J/1.5J |
Input | ||||||||
Input Voltage | Three-phase AC380V 50/60Hz(L1+L2+L3+N+PE) | |||||||
Input Current | Each phase 0~136.5A | |||||||
Leakage Protection | Type B RCD 30mA + 6mA | |||||||
Operating temperature | -20℃~60℃ |
Output | ||||||||
Output voltage | DC 150V~1000V | |||||||
Output current | 0 ~300A |

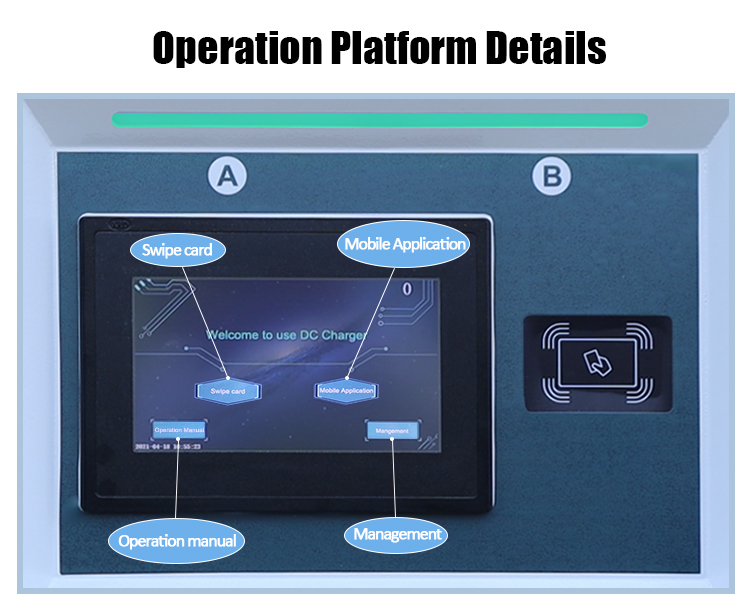

Human-computer interaction | ||||||||
LED indicator | Power supply, charging green, fault red | |||||||

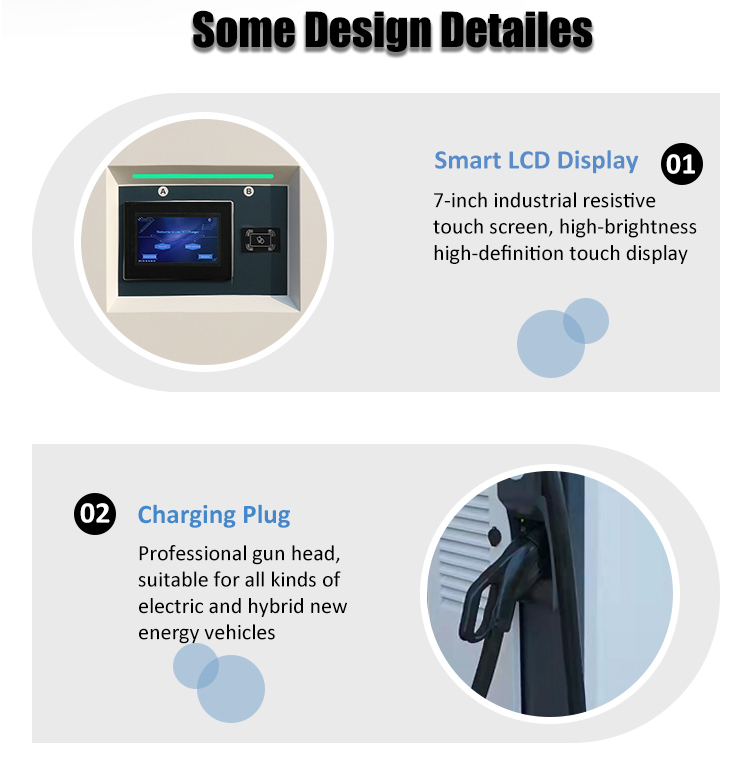

LCD | HD high-brightness industrial resistance display |
![]() |
