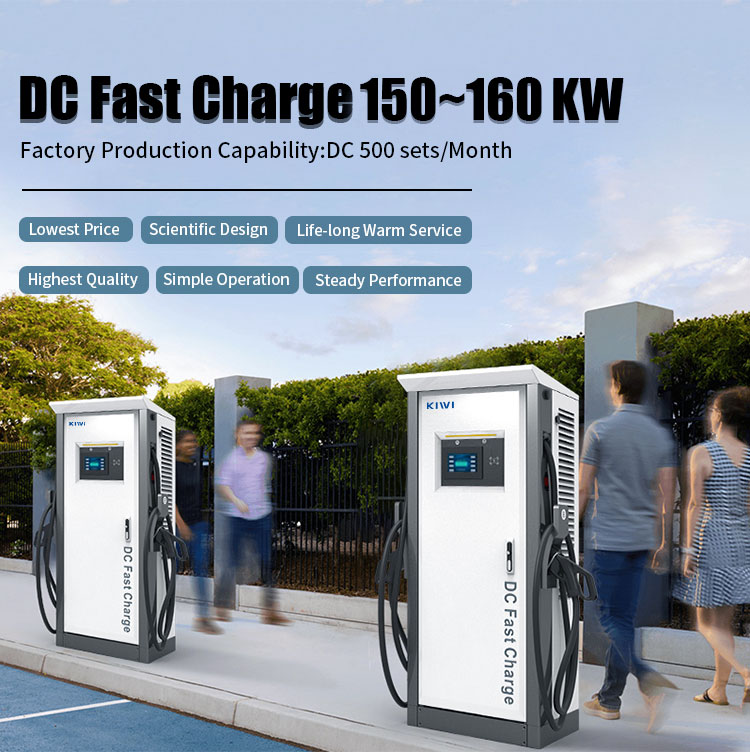

150-160kw Level 3 EV Charging Pile Plug And Charge With Plug Temperature Detection

Place of Origin : Guangdong, China

Model Number : F6-DC1000V-150KW/A-160KW/A

Brand Name : KIWI

Packaging Details : Carton/wooden box

Supply Ability : 3000 Piece/Pieces per Month

Price : $28,000.00/pieces 1-1 pieces

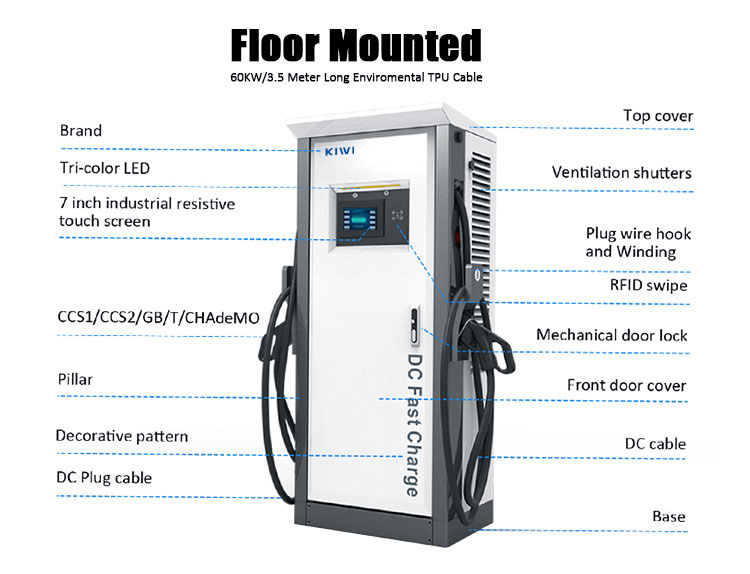

Installation Method : Wall mounted,Floor Stand

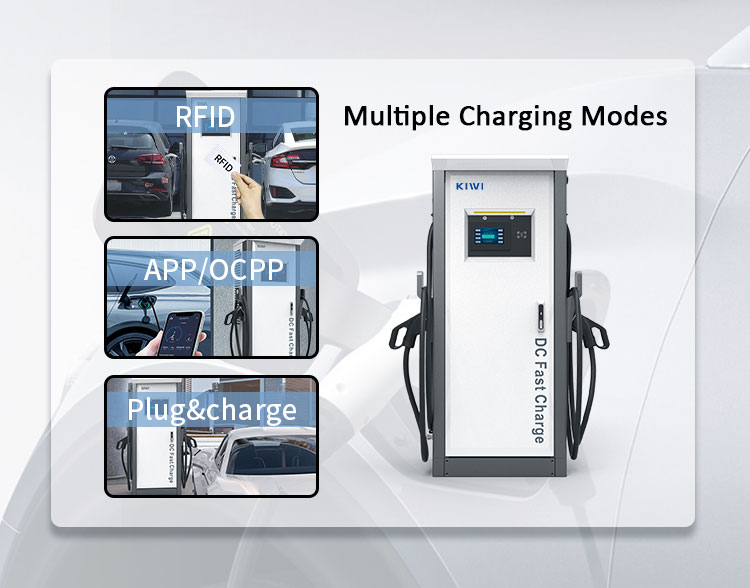

Start-up and billing method : RFID,plug and charge,Scan QRCode

Grid frequency : 50Hz±10Hz

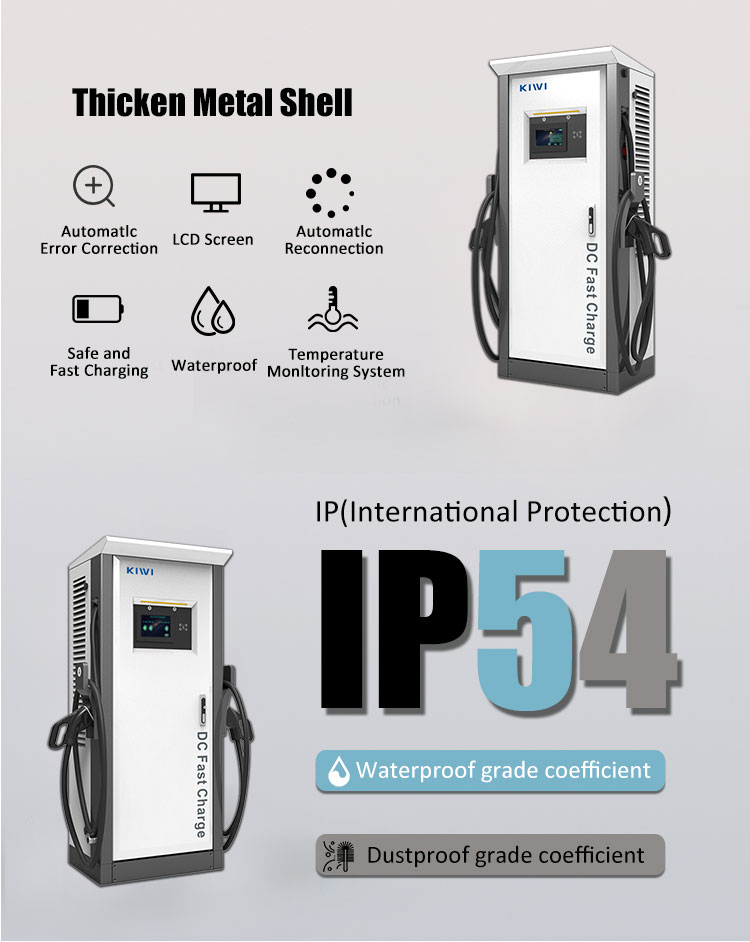

IP protection level : IP54

OCPP : OCPP 1.6J/1.5J

USB : Upgrade, download

RS485 : Point to Point communication

Insulation detection : DC+ and PE, DC- and PE impedance

Connection temperature : Plug temperature detection

Leakage current detection : 30mA leakage protection switch

Port : Yantian Port, Shekou,HK,Foshan,etc.

Contact Now

150-160kw Level 3 EV Charging Pile Plug and Charge with Plug Temperature Detection

150-160kw Level 3 EV Charging Pile Plug And Charge With Plug Temperature Detection
150-160kw Level 3 EV Charging Pile Plug And Charge With Plug Temperature Detection
Item
Discription

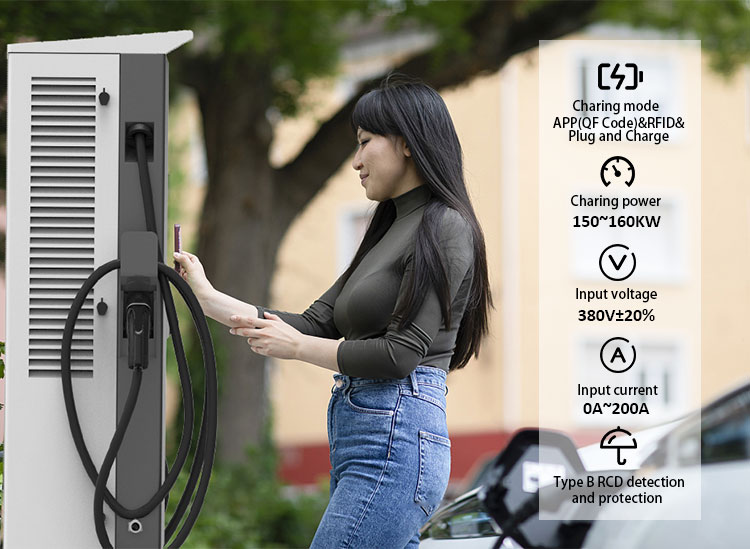

Rated Power
150~160KW
Charging mode
RFID,plug and charge,OCPP(APP/QR Code)

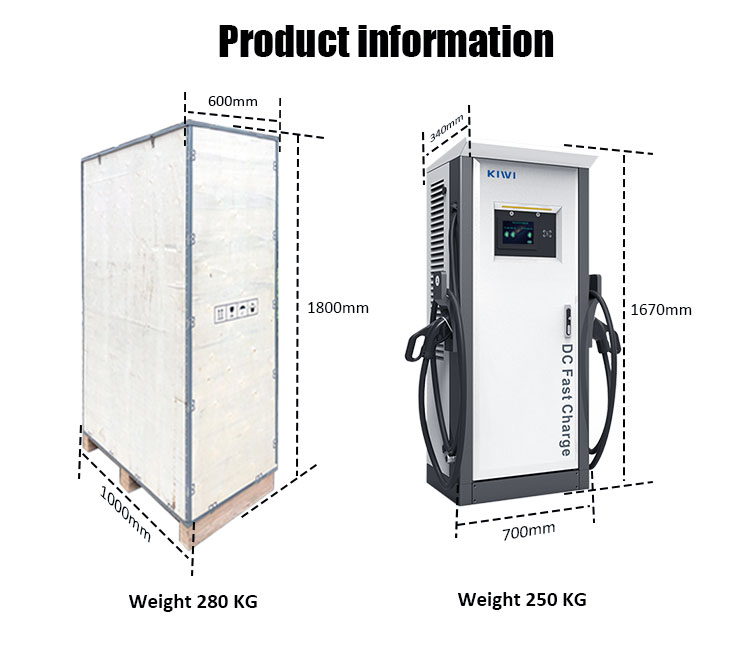

Size (H * W * D)
700*340*1670mm
Weight
250kg
Plug wire length
3.5m(customizable)

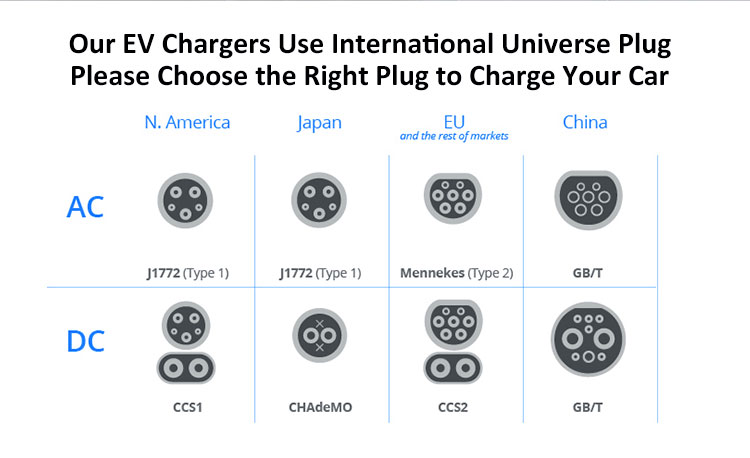

Plug standard
CHAdeMO or CCS1 orCCS2 orGB/T
Protection level
IP54
Cooling Method
Wind cooling
Standard :LAN
Optional :WIFI,4G
server communication, APP communication
OCPP
OCPP 1.6J/1.5J
Input
Input Voltage
Three-phase AC380V 50/60Hz(L1+L2+L3+N+PE)
Input Current
Each phase 0~200A
Leakage Protection
Type B RCD 30mA + 6mA
Operating temperature
-20℃~60℃
Output
Output voltage
DC 200V~1000V
Output current
150~160KW DC 0 ~100A

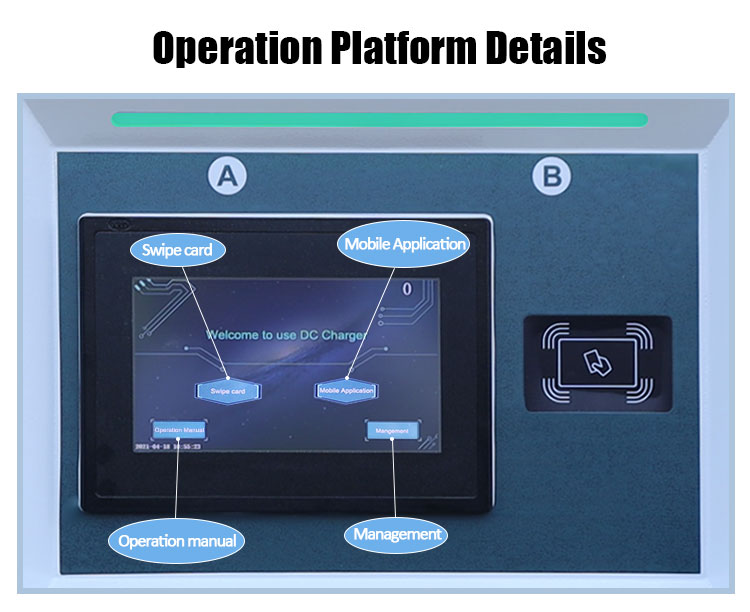

Human-computer interaction
LED indicator
Power supply, charging green, fault red

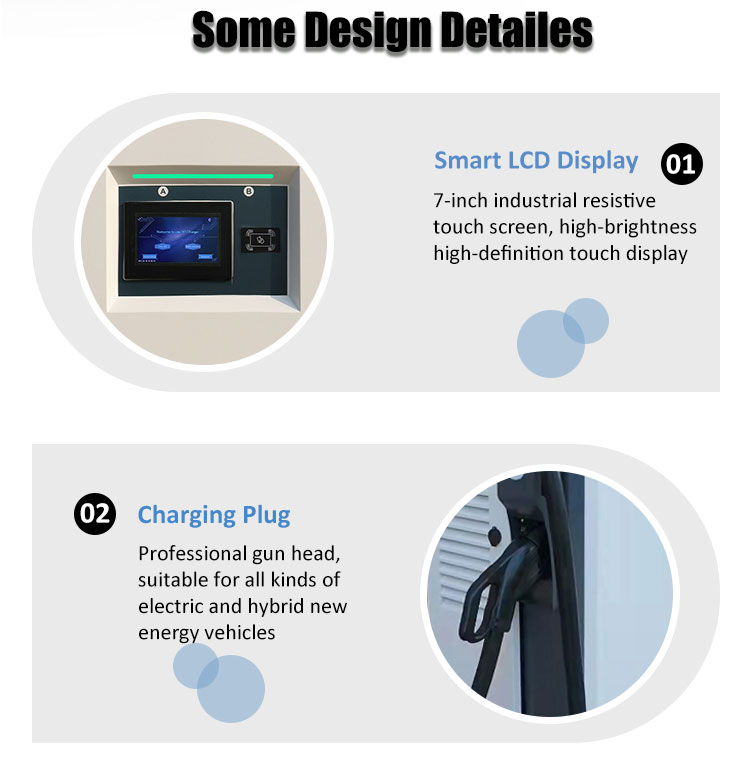

LCD
7 Inch HD high-brightness industrial resistance display
150-160kw Level 3 EV Charging Pile Plug And Charge With Plug Temperature Detection
150-160kw Level 3 EV Charging Pile Plug And Charge With Plug Temperature Detection
150-160kw Level 3 EV Charging Pile Plug And Charge With Plug Temperature Detection
150-160kw Level 3 EV Charging Pile Plug And Charge With Plug Temperature Detection
150-160kw Level 3 EV Charging Pile Plug And Charge With Plug Temperature Detection
150-160kw Level 3 EV Charging Pile Plug And Charge With Plug Temperature Detection
150-160kw Level 3 EV Charging Pile Plug And Charge With Plug Temperature Detection
150-160kw Level 3 EV Charging Pile Plug And Charge With Plug Temperature Detection
150-160kw Level 3 EV Charging Pile Plug And Charge With Plug Temperature Detection
150-160kw Level 3 EV Charging Pile Plug And Charge With Plug Temperature Detection
150-160kw Level 3 EV Charging Pile Plug And Charge With Plug Temperature Detection
150-160kw Level 3 EV Charging Pile Plug And Charge With Plug Temperature Detection
150-160kw Level 3 EV Charging Pile Plug And Charge With Plug Temperature Detection
150-160kw Level 3 EV Charging Pile Plug And Charge With Plug Temperature Detection
150-160kw Level 3 EV Charging Pile Plug And Charge With Plug Temperature Detection
Customers Also LIke to Ask These Questions
Q: How is your electric vehicle charging station after-sale service?
A:1/We will build a whatsapp/skype/wechat service group with technical engineers and company leader if need;
2/We provide 24/7 online service,so you're welcome to contact us any time you need;
3/Will change the part for free during warranty if non-human damage,for other problems,we'd like to supply customer the part at original cost.

Q: How is your payment method?
A: Same as other ev charging stations suppliers,normally 30%-50% deposit and balance paid off before shipment,special requirement customer please contact us for further discussion.

Q: How long is your normal delivery time?
A: 1/For stock ev charger,can arrange the shipment immediately after you confirm the order;
2/For custom AC ev charger less than 100pcs,normally 7-15 days;
3/For custom DC ev charger less than 100pcs,normally 15-25 days;

Q: Can I use my own card or app at your electric car charging stations?
A: Normally the RFID card and app have to identify our electric charger,so we will provide you 3 free RFID card for each charger.

Q:Will your electric car charger charging slower in winter?
A:The electric charging station may need a little longer warm up time before normal run,but this is very small change,it won't
influence the output power,so we can ignore this influence.

Q:Can you provide a video how to install the electric vehicle charger?
A:Yes we have the installation guide video,it's very easy and anyone who know a little about electricity safety can finish this
work,we will also be ready online to help your any possible question.

Q:How can I become your exclusive agency?
A:Only if you have this interest,you can be our agent if we don't have exclusive agent in your market.
if you want to be exclusive agent,we will have an annual sales amount target requirement,welcome to further discuss about more details,we're open to any constructive advice.
