CHAdeMO EV Charger Test System For CCS1 CCS2 GB/T Charging Station

Place of Origin : Guangdong, China

Model Number : EV Simulator

Brand Name : KIWI

Packaging Details : Carton/wooden box

Supply Ability : 10000 Piece/Pieces per Month

Price : $8,950.00/pieces 1-99 pieces

Name : CCS combined charging system DC test simulator

Orotocol : ISO15118, DIN70121 protocol verification

Screen : 7 inch touch display

Voltage : 1000V withstand voltage design

Feature : Portable and convenient

OEM : Accpet

MOQ : 1 PC

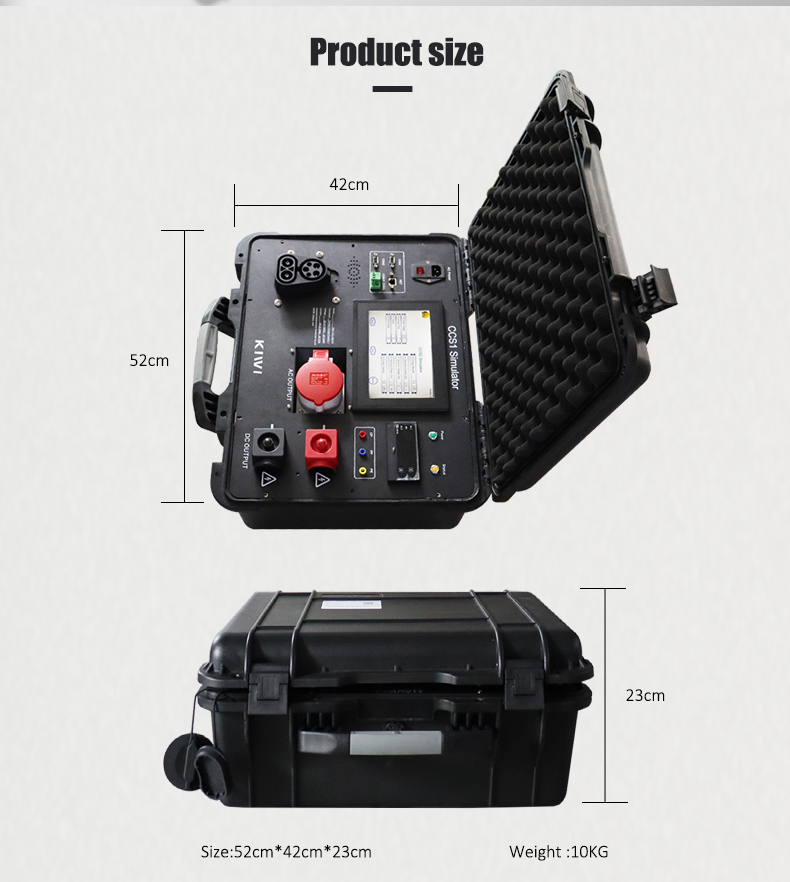

Size : OEM Standard Size

Packing : Standard Packing

Function : Energy Vehicle Charging Protection

Port : Shenzhen,Foshan,etc.

Contact Now

OEM Standard Size EV Charger Test System for CCS1 CCS2 CHAdeMO GB/T Charging Station

CHAdeMO EV Charger Test System For CCS1 CCS2 GB/T Charging Station
Shenzhen Kiwi Technology Co., Ltd.
As a solution provider, we can help you calculate the cost of use and match the best product solution with the local policy.
Products Description
Feature

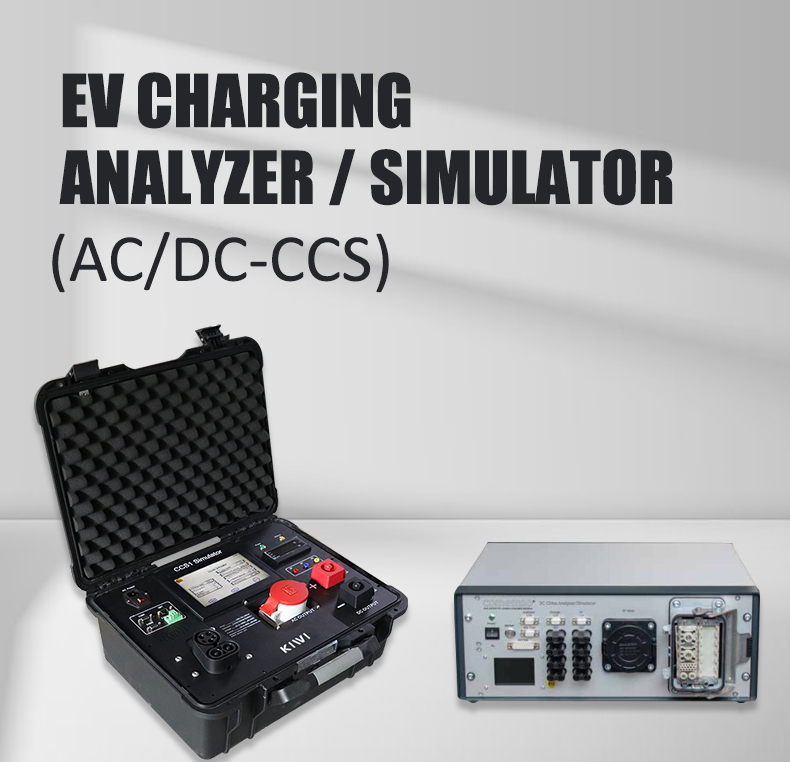

① CCS combined charging system DC test simulator ; ② IS015118, DI N 70121 protocol verification ; ③ 7-inch touch display ; ④ Make each stage of simulation chargin especially pre-charging conditions, timing verification ; ⑤ Make the electricity meter (voltage, current) accurate sampling and intuitive comparison ; ⑥ Connect 200A power line and plastic case circuit breaker to 200A test load ; ⑦ 1000V withstand pressure design ; ⑧ Portable and convenient
CHAdeMO EV Charger Test System For CCS1 CCS2 GB/T Charging Station
CHAdeMO EV Charger Test System For CCS1 CCS2 GB/T Charging Station
CHAdeMO EV Charger Test System For CCS1 CCS2 GB/T Charging Station

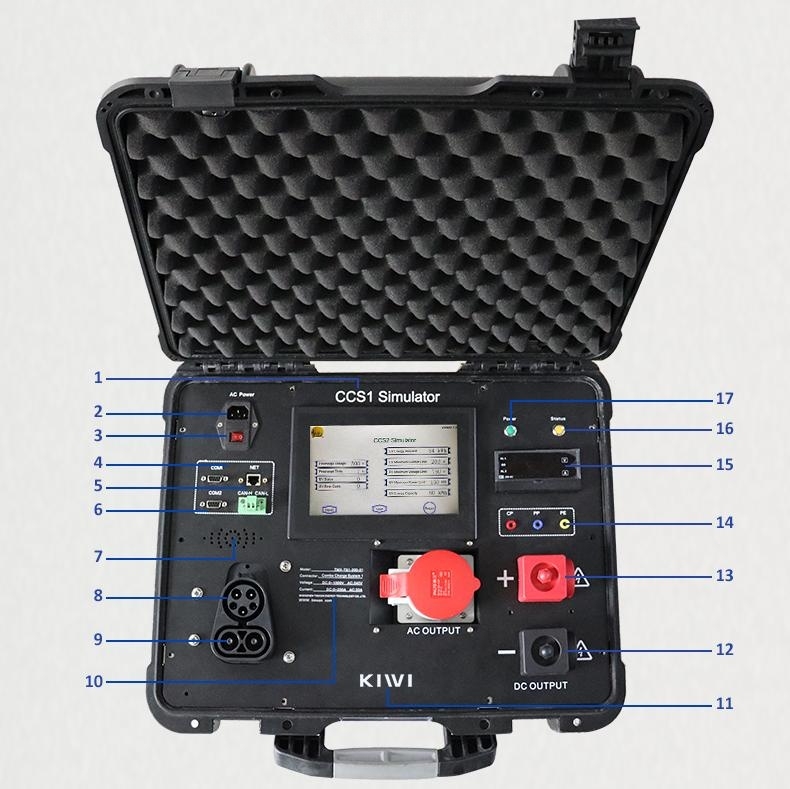

No.
Description
No.
Description
1
Product name
10
Data plate
2
AC power sockets
11
Brand
3
Power switch
12
Output negative wiring holder
4
COM 1 port
13
Output positive terminal holder
5
Ethernet
14
CP / PP / PE terminal junction port
6
COM 2 port
15
High precision meter
7
Air vent
16
Status indicator light
8
CCS 2 AC type 2 interface
17
Power light
9
CCS 2 DC interface
18
more
Detailed Description
The specification and model introduction
Specification
Model
CCS1 Simulator
TMX-TS 1-200
CCS2 Simulator
TMX-TS 2-200
For example, the CCS 2 standard test specifications are shown in the figure below
Model
TMX-TS 2-200
Connector
Combo Charge System 2
Voltage
0 ~ 1000V
Current
0 ~ 200A
>American CCS 1 DC charging test emulator, for American DC charging pile test
> European CCS 2 DC charging test emulator, for European DC charging pile test
> 200A input and output main line (300A capacity design)
> The 1,000 V test and inspection electricity meter
CHAdeMO EV Charger Test System For CCS1 CCS2 GB/T Charging Station
Item
Description
Start
With automatic start, the button does not operate
Stop
Stop the simulation test

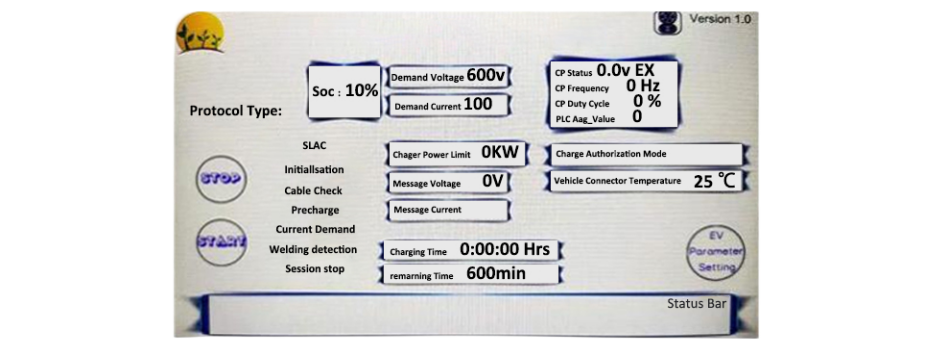

EV Parameter Setting
EV-related settings
Protocol Type
Protocol type
Soc
EV is the Current SOC
Demand Voltage
EV demand voltage
Demand Current
EV demand current
CP Status
CP voltage
CP Frequency
CP frequency
CP Duty Cycle
CP duty cycle
PLC Aag_Value
Mean signal mass decay value of the PLC
Chager Power Limit
Max charger power
Message Voltage
Message voltage
Message Current
Message current
Charging Time
Charging interval
Remarning Time
Remaining charging time
Charge Authorization Mode
Authorization method
Vehicle Connector Temperature
Connector temperature
CHAdeMO EV Charger Test System For CCS1 CCS2 GB/T Charging Station
Item
Description
Precharge Voltage
Pre-charging pressure
Precharge Voltage
Pre-charging pressure
Precharge Time
Pre-charge time
EV Status
EV current state
EV Error Code
EV error code
EV Energy Request
EV electric energy
EV Maximum Current Limit
EV maximum current
EV Maximum Voltage Limit
EV peak voltage
EV Maximum Power Limit
EV maximum power
EV Energy Capacity
EV battery capacity
Reset
Factory data reset
Save
Save the settings button
Return
Return to the home page button

Operation method

> Power on the CCS simulator > Familiarize with the various parameters of the simulator,set the match parameters with the charger, and save the settings. > Plug in the CCS Plug head > The CCS simulator automatically detects the CP status and initiates the SLAC >Charging pile test and start the charging, and start the SLAC matching process > The LCD display the communication interaction parameters and the corresponding states. The LED yellow indicator light indicates the current charging communication establishment state, slow flashing indicates the start of communication, fast flashing indicates pre-charging, and constant light indicates cyclic charging. > Click on the STOP to stop the analog charging test

Load interface

> Red positive + > Black connection anode- > Load can be R load, battery, RCD load, etc > Load wiring method: unscrew the top red nut and remove the > protective cover.Show the wire bronze medal, twist > Load the cable can b ed.Install th ae cover back A receiving lt.

Test content

> Complete simulation of the IS015118 / DI N 70121 protocol > Similate and verify the complete charging process > Check the pre-charging Precharge, and check the pre- charging pressure and timing inspection > Provide 200A and 1000V band-load access test > Ultra-long communication is stable and reliable test, pressure test,and success rate test > Charging status indicates the LED, and the LCD displays each charging stage and the corresponding charging sequence > Air-cooled fan is hot > Output performance of 300A and 1000V range
