Energy Power Meter Small Smart RS485 Modbus Data Logger Charging Pile 50imp/KWh

Product Categories
Shenzhen Kiwi Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Energy Power Meter Small Smart RS485 Modbus Data Logger Charging Pile 50imp/KWh

Place of Origin : Guangdong, China

Model Number : Electronic DC Energy Meter

Brand Name : KIWI

Packaging Details : Carton/wooden box

Supply Ability : 10000 Piece/Pieces per Month

Price : $69.00/pieces 1-99 pieces

Product Name : Electronic DC Energy Meter

Reference voltage : 400V,700V or 1000V

Reference current : 100A/75mV,200A/75mV,300A/75mV,400A/75mV,500A/75mV

Pulse constant : 50imp/kWh , 100imp/kWh ,200imp/kWh

Accuracy : 0.5 level

Auxiliary power : DC 24V or AC 220V

Display method : LCD display, HTN material

Operating temperature : -25℃~+60℃

Electrostatic immunity test : IEC61000-4-2, Level 4

Conducted RFI test : EN55022, Class B

Port : Shenzhen,Foshan,etc.

Contact Now

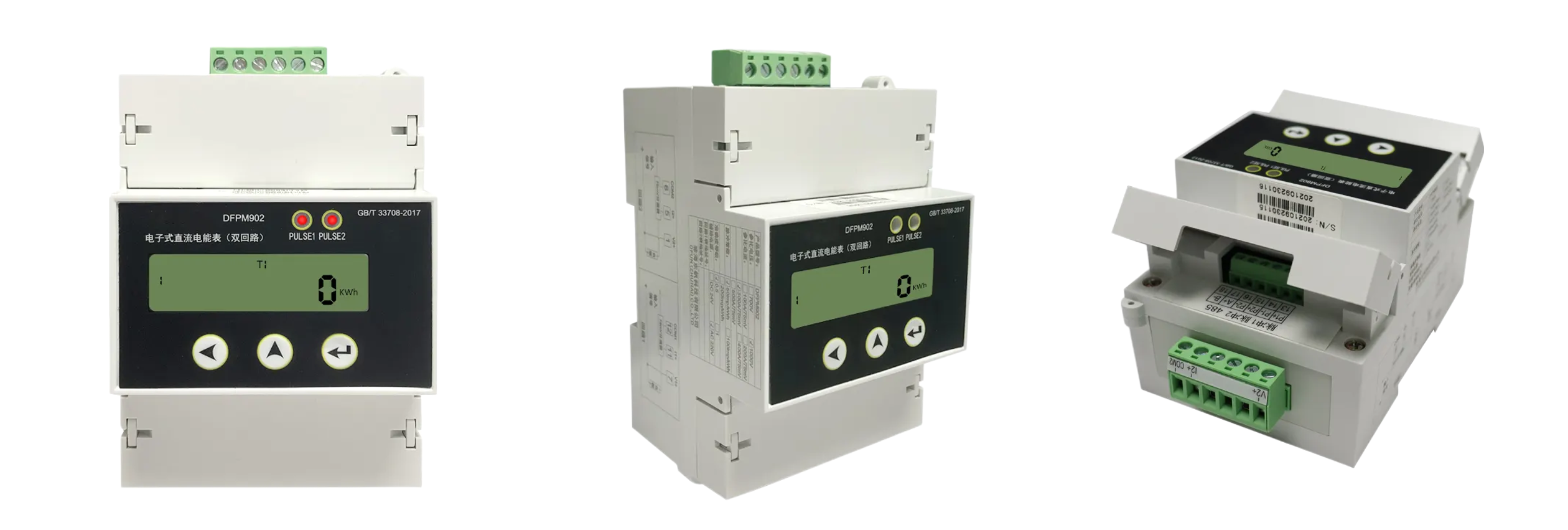

DFPM 902 Energy Power Meter Small Smart RS485 Modbus Data Logger for Charging Pile

Specification
Model Number
Electronic DC Energy Meter
Reference voltage
400V,700V or 1000V
Reference current
100A/75mV,200A/75mV,300A/75mV,400A/75mV,500A/75mV
Pulse constant
50imp/kWh , 100imp/kWh ,200imp/kWh
Accuracy
0.5 level
Auxiliary power
DC 24V or AC 220V
Display method
LCD display, HTN material
Operating temperature
-25℃~+60℃
Electrostatic immunity test
IEC61000-4-2, Level 4
Conducted RFI test
EN55022, Class B
Product Description
Energy Power Meter Small Smart RS485 Modbus Data Logger Charging Pile 50imp/KWh
Energy Power Meter Small Smart RS485 Modbus Data Logger Charging Pile 50imp/KWh
Energy Power Meter Small Smart RS485 Modbus Data Logger Charging Pile 50imp/KWh

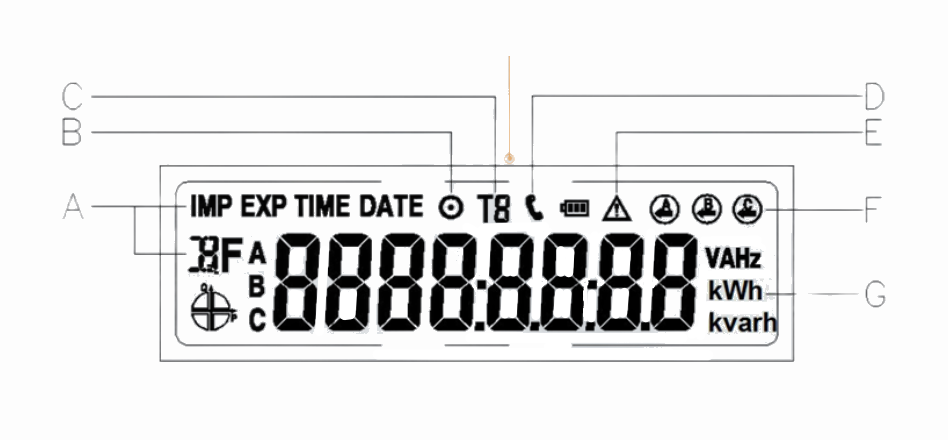

A: Displays the data type prompt B: Programming mode prompt. When the two left buttons on the panel are pressed at the same time, the meter is in the programming state. Press the two buttons again to cancel the programming state, and the prompt disappears synchronously. C: Return rate prompt D: Communication prompt E: Device fault prompt F: A Represents circuit 1 power reverse and B represents loop 2 power reverse. G: Display the data units
Energy Power Meter Small Smart RS485 Modbus Data Logger Charging Pile 50imp/KWh

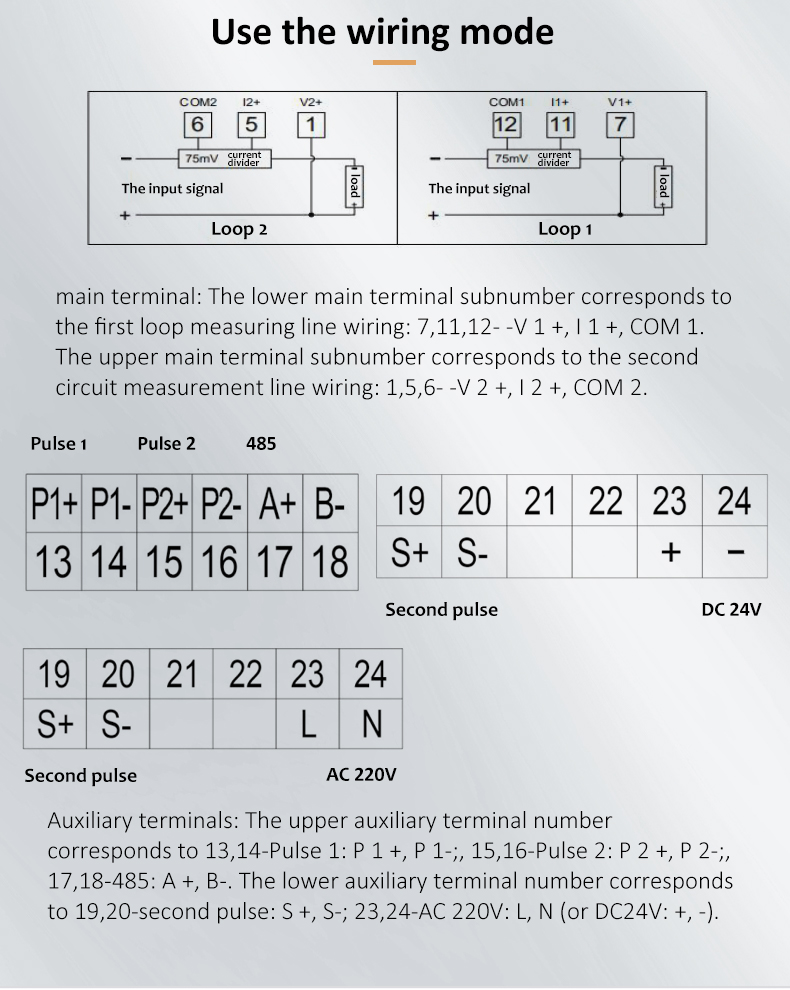

Main terminal: The lower main terminal subnumber corresponds to the first loop measuring line wiring: 7,11,12- -V1+, I1+, COM1. The upper main terminal subnumber corresponds to the second circuit measurement line wiring: 1,5,6- -V2 +,I2+,COM2.
Energy Power Meter Small Smart RS485 Modbus Data Logger Charging Pile 50imp/KWh
Auxiliary terminals: The upper auxiliary terminal number corresponds to 13,14-Pulse 1: P 1+, P 1-;, 15,16-Pulse 2: P 2 +, P 2-;, 17,18-485: A +, B-. The lower auxiliary terminal number corresponds to 19,20-second pulse: S +, S-; 23,24-AC 220V: L, N (or DC24V: +, -).
Why Choose Us
Energy Power Meter Small Smart RS485 Modbus Data Logger Charging Pile 50imp/KWh
Shenzhen Kiwi Technology Co.,Ltd.
Our company a high-tech enterprise specializing in complete ev charging solution from high-quality AC EV wallboxes, reliable DC EV fast charging stations with robust connectivity, App/PC operation software to innovative on-demand ev charging systems. Kiwi has 4 production bases with modern workshops, complete production line and advanced testing equipments. One of them is covered more than 26,000㎡. Kiwi has passed 1S09001, ISO14001 and ISO16949 certification.

2
The group has 2 sub-brands

8
Established 8 years ago

10
Global Sites 10+

15
Regional access certificate 15+

20
20+ R&D engineers

29
Served 29 countries

120
120+ experienced employees

330
330+ orders per year

2200
OCPP loading devices 2200+
Energy Power Meter Small Smart RS485 Modbus Data Logger Charging Pile 50imp/KWh
Energy Power Meter Small Smart RS485 Modbus Data Logger Charging Pile 50imp/KWh
Energy Power Meter Small Smart RS485 Modbus Data Logger Charging Pile 50imp/KWh
Energy Power Meter Small Smart RS485 Modbus Data Logger Charging Pile 50imp/KWh
Our sales teams come from different countries who are dedicated to provide the best product and service in EV charger industry for you.
Energy Power Meter Small Smart RS485 Modbus Data Logger Charging Pile 50imp/KWh
Our elite engineers have more than 10 years experience that they can solve your professional questions of EV charger.
Energy Power Meter Small Smart RS485 Modbus Data Logger Charging Pile 50imp/KWh
We have 100% real professional factory, if we both have the sincerity of cooperation, we will definitely give you the most competitive price.
Energy Power Meter Small Smart RS485 Modbus Data Logger Charging Pile 50imp/KWh
We welcome communication from people all over the world, whether you end up buying from us or not.
Energy Power Meter Small Smart RS485 Modbus Data Logger Charging Pile 50imp/KWh
Energy Power Meter Small Smart RS485 Modbus Data Logger Charging Pile 50imp/KWh
